E90 Entertainment and Communication: Telephone: Notes

The E90 is equipped with the same TCU that is found in the E60 and E63/4 vehicles only if option code SA639 (Assist or Premium Package) is ordered.

The range of functions offered are as follows:

• The Telematic Control Unit is fitted as standard in order to provide the Telematic functions Emergency call (E-call) and Breakdown call (B-call)
• Dual band 800 MHz and 1900 MHz
• Combined NAD (network access device) transceiver module for the:
  • analog AMPS (American Mobile Phone Standard)
  • digital CDMA (Code Division Multiplex Algorithm) standard

Two different equipment levels are offered for the American market:

• Telematic Control Unit with Telematic functions Emergency call (E-Call) and Breakdown call (B-Call) without base plate or snap-in adapter.
• Telematic Control Unit with Telematic functions Emergency call (E-Call) and Breakdown call (B-Call) with base plate and snap-in adapter for a supported Bluetooth compatible mobile phone.

The telematic control unit is factory-programmed as "active" for Bluetooth. Consequently, any supported  mobile phone can be linked to the vehicle.

The customer also has the facility for charging the mobile phone in the vehicle and making calls via the external aerial. The external aerial reduces the radiation exposure inside the vehicle.

There are optional components available for the TCU:

• Base plate
• Snap-in adapter for Bluetooth-compatible mobile phone
• Compensator (optional)

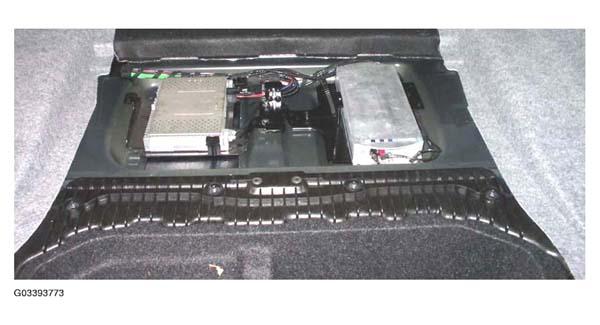

  Fig 1: Identifying SDARS Tuner And TCU Location

  Courtesy of BMW OF NORTH AMERICA, INC.

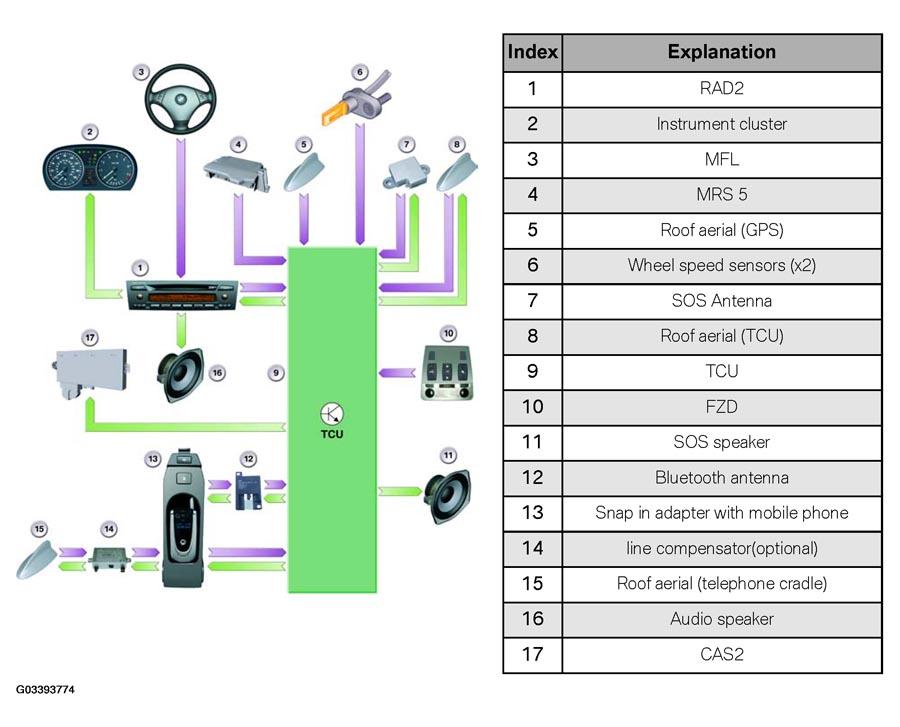

The Telematic Control Unit supports

• Telematic
• TeleService
• BMW Assist

The TCU has an embedded phone that can call out for these services as long as the vehicle is in an area with cellular phone coverage.

The Telematic option provides the following:

• Emergency-call button with emergency-call indicator lamp
• SOS speaker
• SOS antenna

The telephone aerials for TCU and mobile phone are integrated in the roof aerial. There is an emergency backup antenna on the rear parcel shelf.

The Bluetooth antenna is located behind the steering column trim panel.

The hands-free microphone for telephone calls and voice control of the telephone is in the roof function module (FZD) which is located on the driver's side.
