System Components And Features: CCC

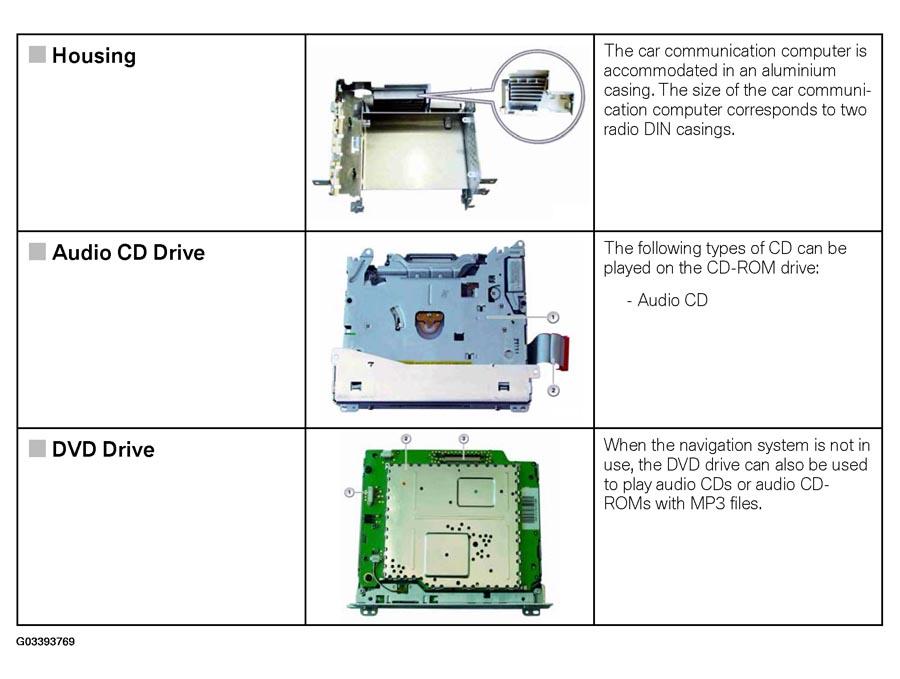

Fig 1: System Components And Features Chart (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

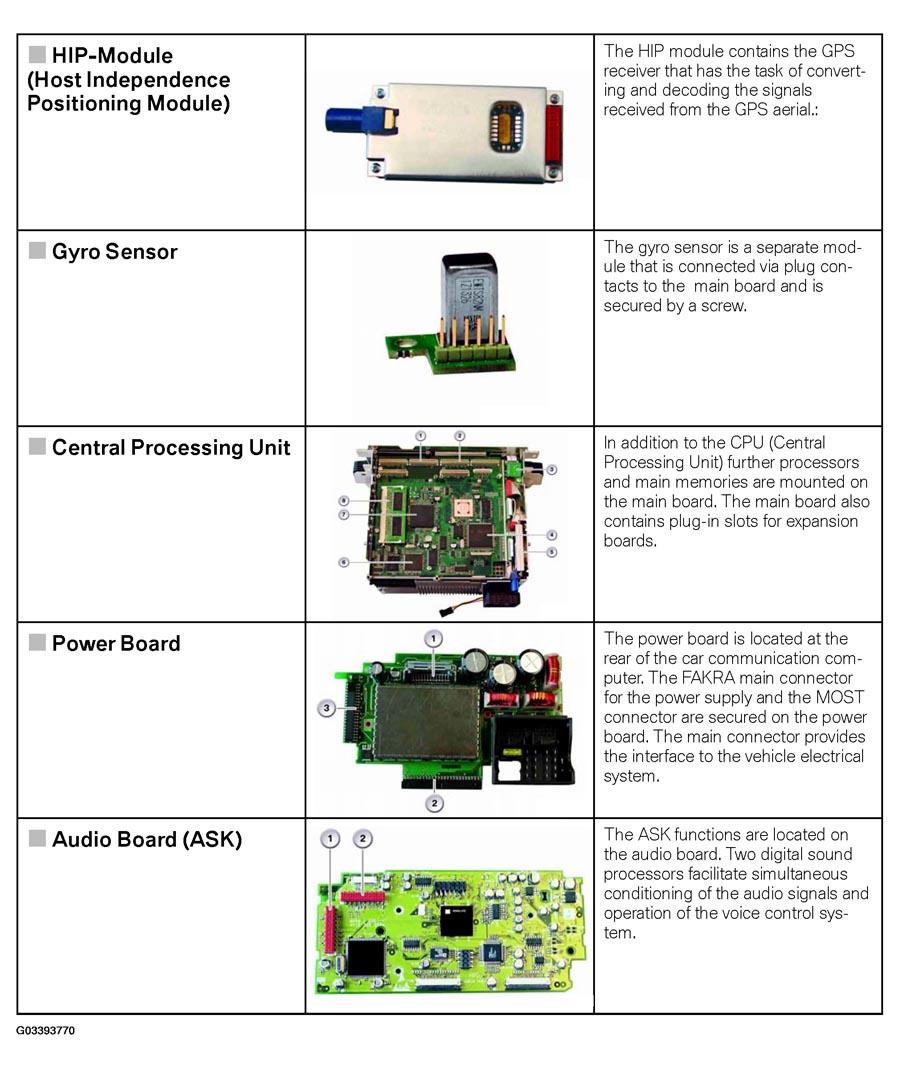

Fig 2: System Components And Features Chart (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

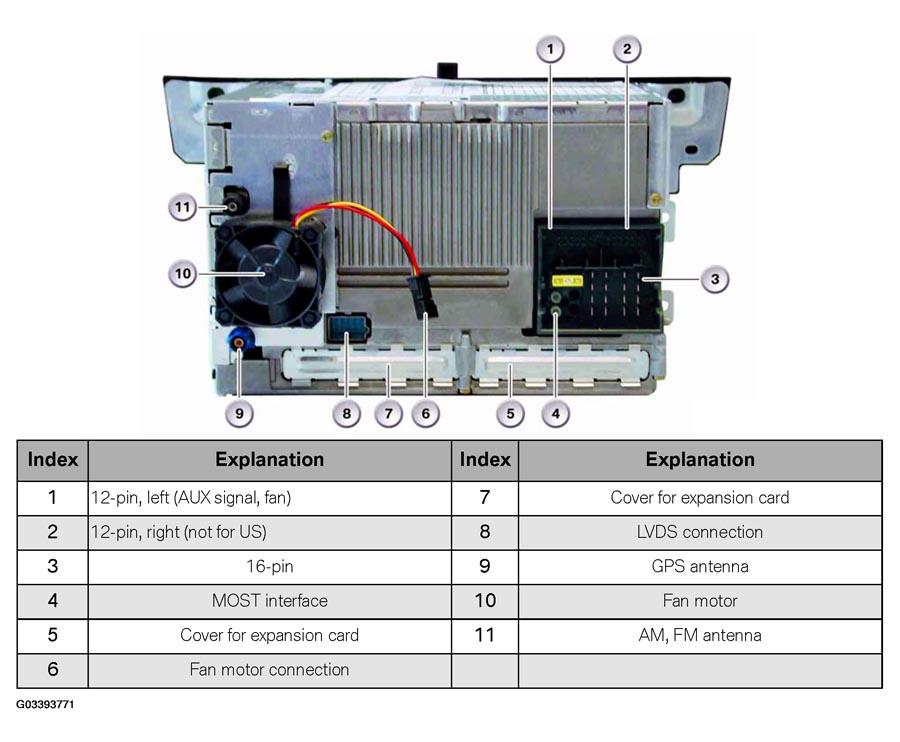

Fig 3: Identifying Back View Of CCC

Courtesy of BMW OF NORTH AMERICA, INC.

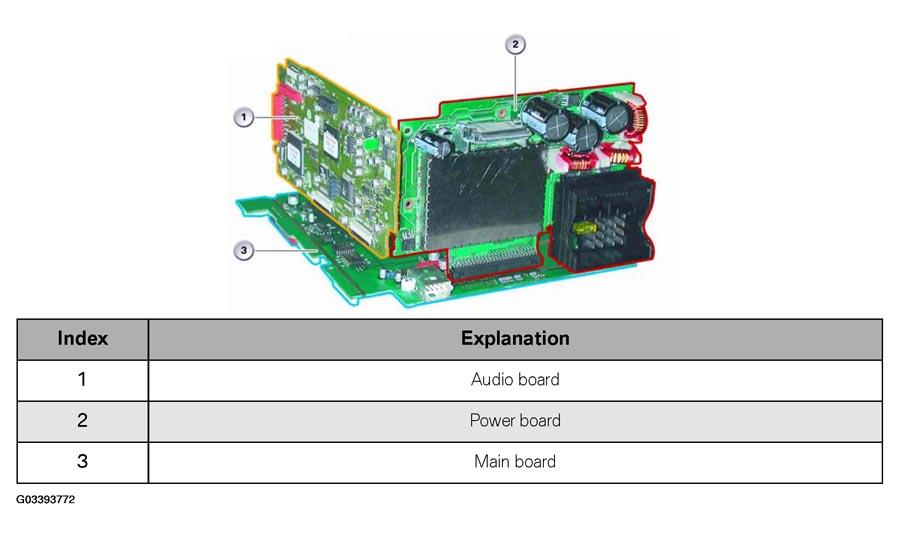

Fig 4: Identifying Inside Components Of CCC

Courtesy of BMW OF NORTH AMERICA, INC.
