33 4 480 Set of tools

Minimum set: Mechanical tools

In conjunction with: 33 4 460,33 4 470

Note: For removing and installing ball joint in wheel carrier.

Series: E81, E87, E90, E91, E92, E93

Storage location: B49

SI number: 1 15 04 (117)

Order number: 33 4 480

Set of tools

Consisting of:

1 = 33 4 481 Draw-in disk

2 = 33 4 482 Pull-out disk

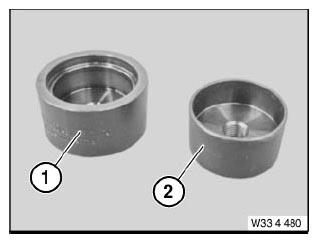

Fig 1: Identifying Special Tools (33 4 480) Components

Courtesy of BMW OF NORTH AMERICA, INC.
