72 11 098 Removing and installing/replacing all rear lower belt fittings

WARNING: Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners.

Necessary preliminary tasks:

Illustration show removal of the left lower belt fitting; proceed in the same way for the right fitting.

Release screw (1).

Remove lower belt fitting (2).

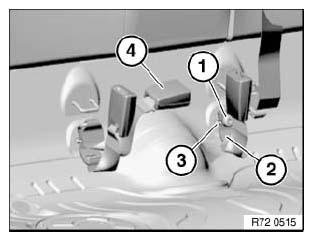

Fig 1: Identifying Lower Belt Fitting, Pin And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pin (3) determines the installation position and prevents the lower belt fitting (2) from turning.

NOTE: Middle lower belt fitting (4) can only be removed in conjunction with right lower belt fitting.

Lower belt fitting with belt tensioner:

Illustration show removal of the left lower belt fitting; proceed in the same way for the right fitting.

Unfasten plug connection (2) and disconnect.

Release screw (1).

Remove lower belt fitting (3).

Installation:

Pin (4) determines the installation position and prevents the lower belt fitting (3) from turning.

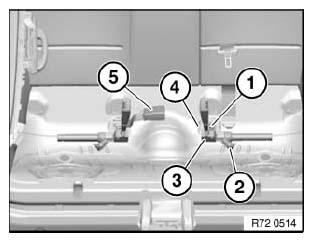

Fig 2: Identifying Plug Connection, Lower Belt Fitting, Pin And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Middle lower belt fitting (5) can only be removed in conjunction with right lower belt fitting.
