72 11 092 Removing and installing/replacing rear left or right seat belts

Necessary preliminary tasks:

• Remove rear window shelf
• Remove rear seat

Removing left or right inertia reel unit:

Release screw (1) on inertia reel unit (2).

Tightening torque 72 11 20AZ. See RESTRAINT SYSTEM - TIGHTENING TORQUES .

Remove inertia reel unit (2).

Installation:

Pay attention to coding.

Push inertia reel unit (1) onto body lug (2).

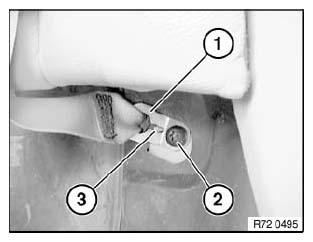

Release screw (2).

Tightening torques 72 11 22AZ. See RESTRAINT SYSTEM - TIGHTENING TORQUES .

Remove seat belt (1).

Installation:

Pin (3) determines the installation position and prevents the anchor fitting from turning.
