52 24 005 Removing And Installing/Replacing Rear Seat (Normal)

Unclip rear seat (1) on left and right.

Feed out belt buckles (2).

If necessary, disconnect plug connection for seat heater.

Remove rear seat (1).

Fig 1: Rear Seat, Belt Buckles And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cup holder (2) towards front.

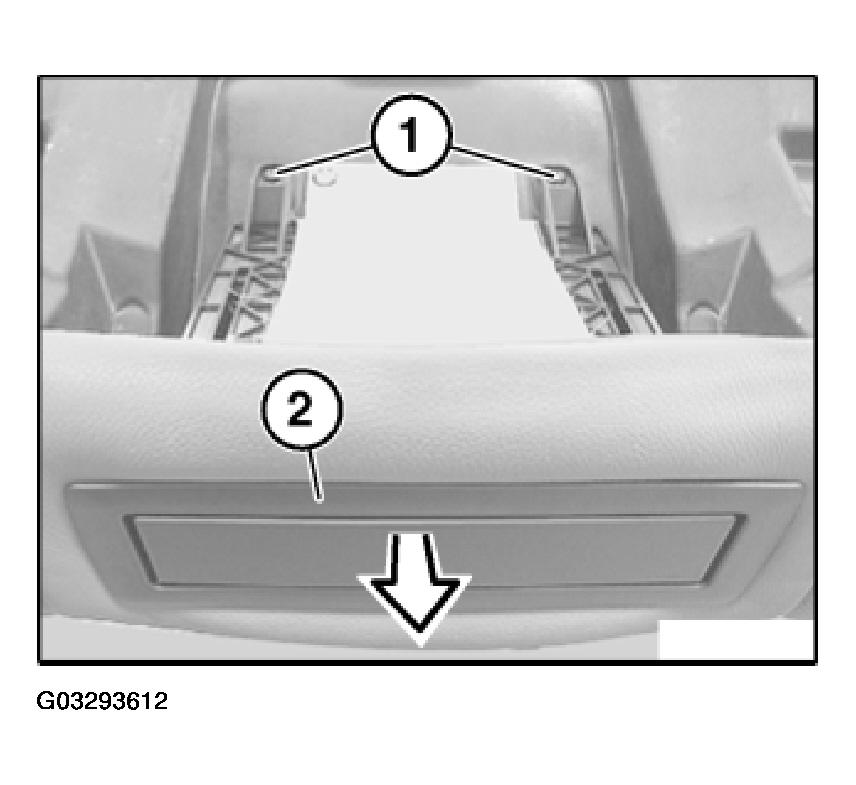

Fig 2: Cup Holder, Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
