11 14 141 Replacing radial shaft seal in timing case cover at bottom (N62 / N62TU)

NOTE:

For Special Tool identification, see ENGINE - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

11 9 410
11 9 420

Necessary Preliminary Tasks:

Removing hub for vibration damper. Refer to 11 23 031 REMOVING AND INSTALLING / REPLACING VIBRATION DAMPER HUB (N62 / N62TU) .

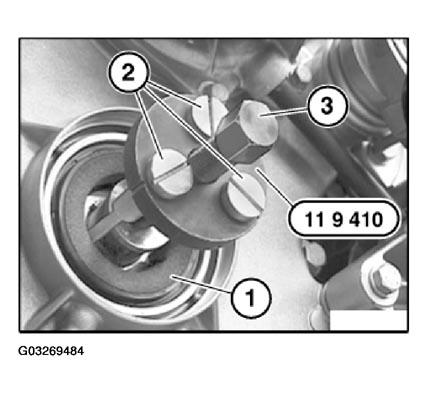

Position lever (2) for removing radial shaft seal (1) horizontally and install special tool 11 9 410.

Fig 1: View Of Special Tool 11 9 410 (Puller)

Courtesy of BMW OF NORTH AMERICA, INC.

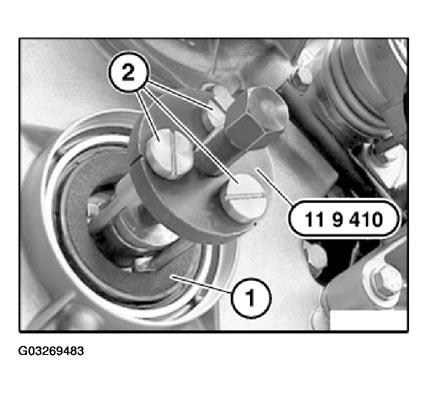

Turn lever (2) so that it grips behind radial shaft seal (1).

Turn bolt (3) on special tool 11 9 410 to remove radial shaft seal (1).

Fig 2: Identifying Components Of Special Tool 11 9 410

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Radial shaft seal may only be supported with a "support sleeve".

If the radial shaft seal (1) is stored for longer than six months without the support sleeve (2), its operational reliability can no longer be guaranteed and it must not be reused.

IMPORTANT: The sealing lip of the radial shaft seal is highly sensitive and must not be kinked under any circumstances. Do not touch the sealing lip with your fingers.

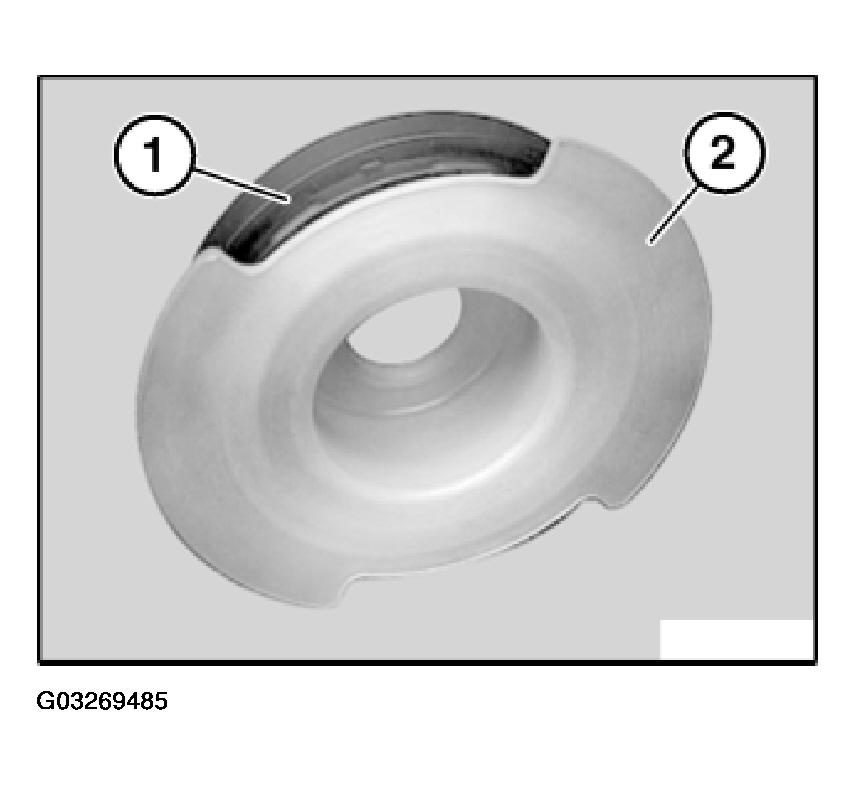

Remove support sleeve (2) from radial shaft seal (1).

Fig 3: View Of Support Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

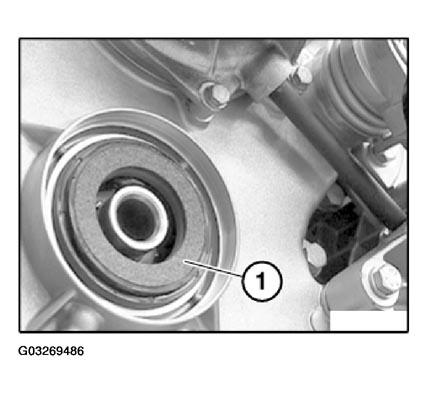

Fit radial shaft seal (1) on timing case cover.

Fig 4: Aligning Radial Shaft Seal On Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

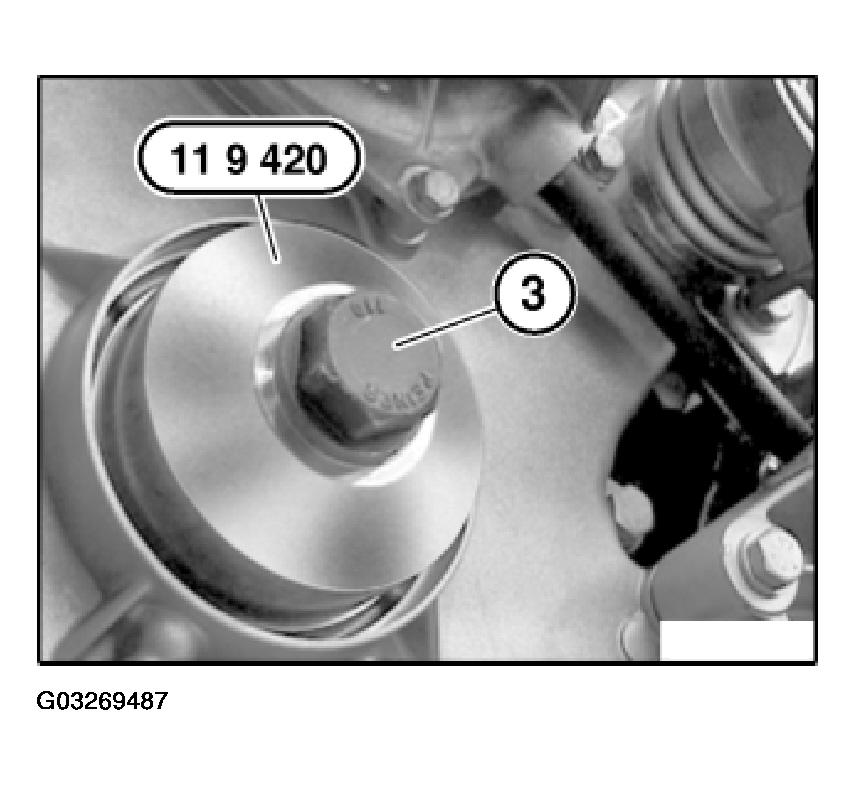

Using special tool 11 9 420 and central bolt (3), install radial shaft seal flush with timing case cover.

Fig 5: Installing Radial Shaft Seal Using Special Tool 11 9 420
