HUD Switch

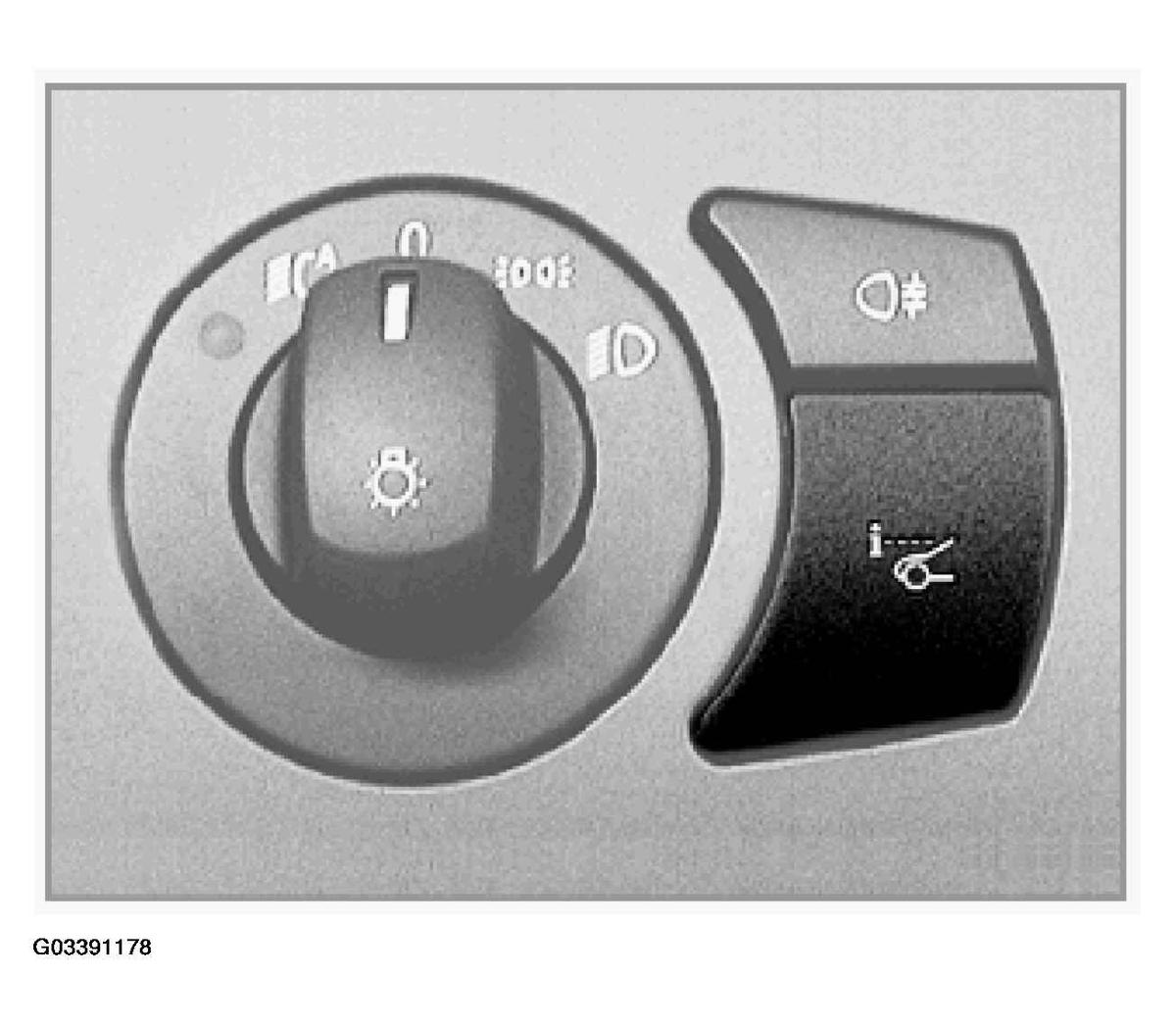

The HUD switch is located next to the headlight switch.
The switch provides two possible functions dependent upon the length of time that the switch is pressed:
- Pressing the button for less than 10 seconds, switches the Head-up display on or off.
- Pressing the button for more than 10 seconds, activates the test functions for service personnel.
- Once the test functions are accessed, the additional functions can be activated by briefly pressing the button.
- To re-activate the head-up display, press the button again and hold it for longer than two seconds.
The HUD switch is a direct input to the HUD unit. The switch is resistance coded allowing the HUD to identify button faults.
