65 82 050 Removing and installing (replacing) on-board monitor

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

IMPORTANT: Proceed with care so as to avoid damaging the on-board monitor and adjoining trims.

Release screws (1).

Fold out on-board monitor (2) in direction of arrow.

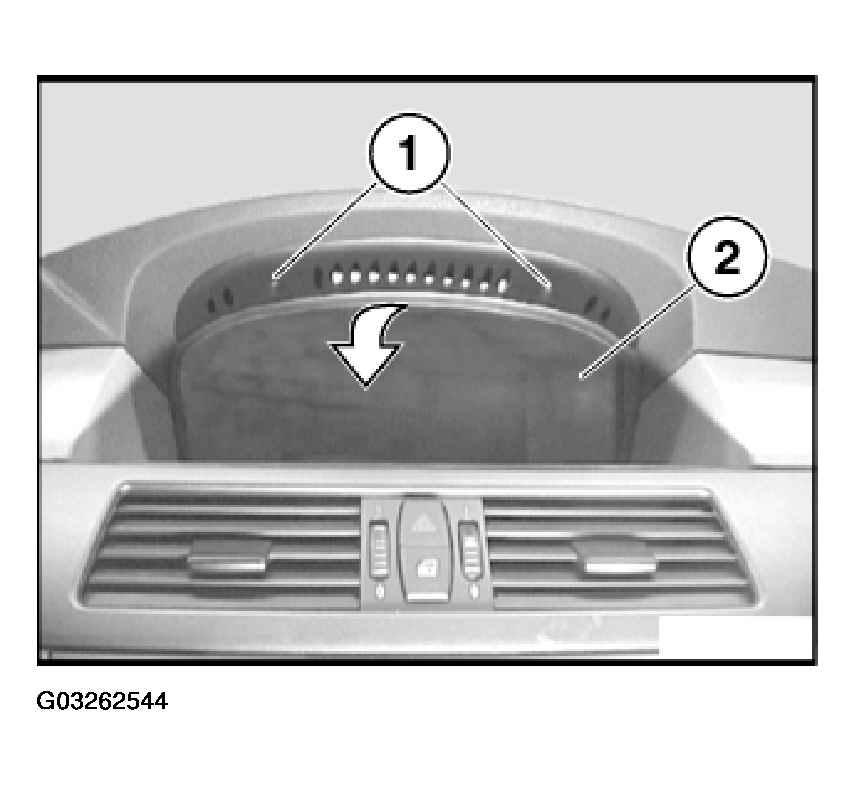

Fig 1: Folding Out On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Installation:

Ensure correct cable routing.

Remove on-board monitor (2).

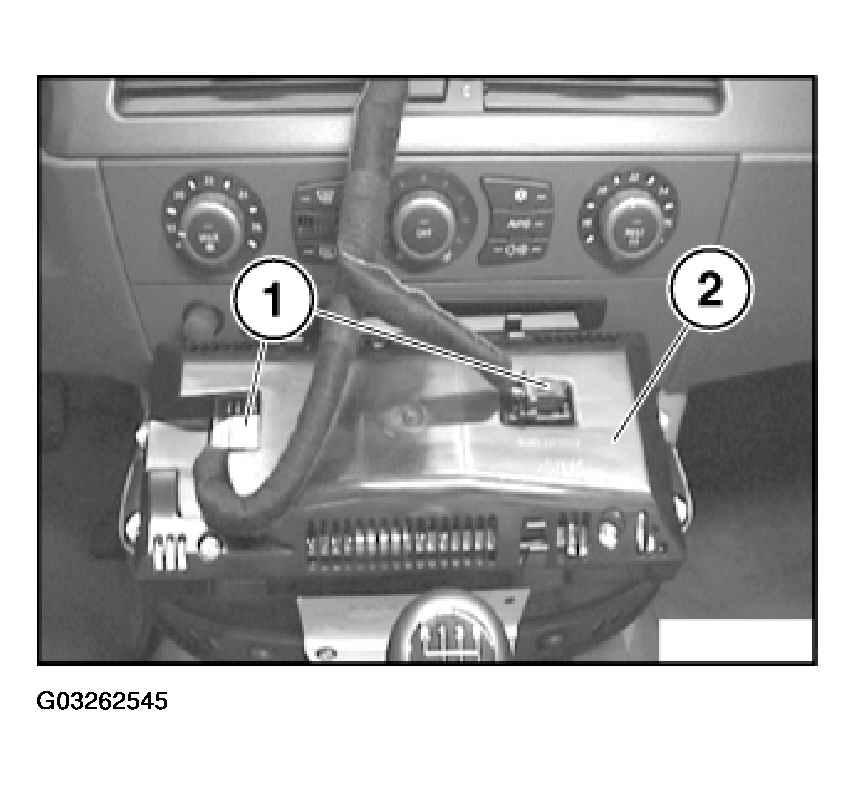

Fig 2: Removing On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
