12 31 ... Replacing Alternator Belt Pulley (With Overrunning Clutch)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW X5, 2010 BMW 650i, 2009 BMW X5, 2009 BMW 650i, and 2008 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 12 7 120
Remove and install alternator drive belt.

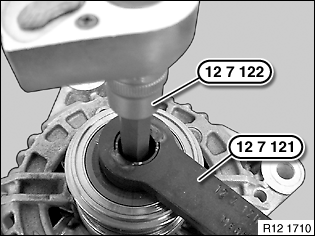

Grip alternator shaft with:
- internal serration
Release nut with special tools 12 7 120.
Installation:
Tightening torque: 12 31 3AZ. See ENGINE - TIGHTENING TORQUES .
