12 Removing And Installing Engine Compartment Suppression Lines (Grounding Cables) (N62/TU)
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW X5, 2010 BMW 650i, 2009 BMW X5, 2009 BMW 650i, and 2008 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Read out fault memory of DME control unit; if necessary, work through test schedules
- Switch off ignition
- Disconnect battery negative lead
- If necessary, remove acoustic cover
- REMOVE INTAKE HOSE
- Remove intake filter housing
Release screw connection (1) of intake filter mounting.
Pull ignition coil covers (2) out of rubber grommets.

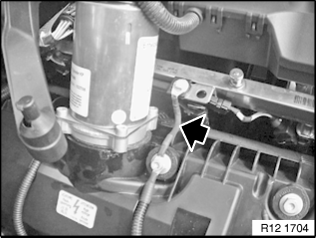

Release front screw connection of fuel injector wiring harness, screw down grounding strap with crimp connection again in upward direction.
Release ignition coil ground screw connection and screw other end of grounding strap to ignition coil ground again.
Installation:
Tightening torque: 12 52 3AZ . See CONNECTIONS, TERMINALS, LOOSE PARTS for specs.
The picture shows the right cylinder bank, the procedure for the left cylinder bank is identical.
Add final details to vehicle, read out fault memory.
