Removal & Installation

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear axle carrier. See AXLE CARRIER  .
  2. Release nut (1) and detach stabilizer link from stabilizer bar. Release screws (2) on stabilizer mounting on left and right. See Fig 1 .
  3. To install, reverse removal procedure. Check rubber mounts and replace if necessary. Tighten fasteners to specification. See TORQUE SPECIFICATIONS  .

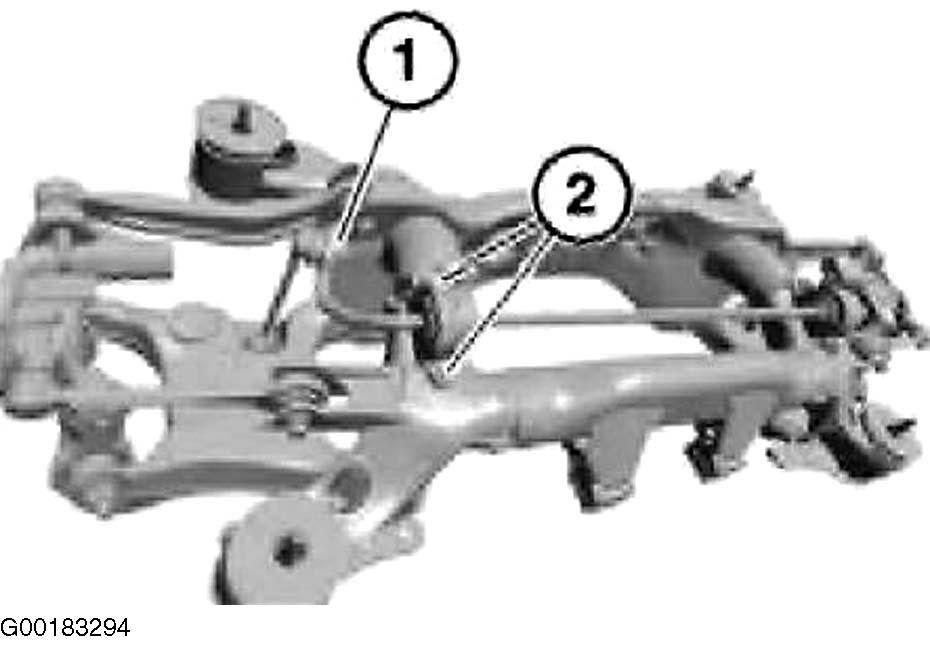

Fig 1: Removing Stabilizer Bar
G00183294Courtesy of BMW OF NORTH AMERICA, INC.
