Removal & Installation

WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Extend steering wheel setting up to stop. Lever out adjusting switch (1) and disconnect plug. Release screw. See Fig 1 .
Press lower section of steering column trim inwards on both sides in area shown and detach from below. Pull off lower section of steering column trim towards rear with a forceful jolt. See Fig 2 .
To install, reverse removal procedure. Locking unit (1) must locate in the hook (2). See Fig 3 .

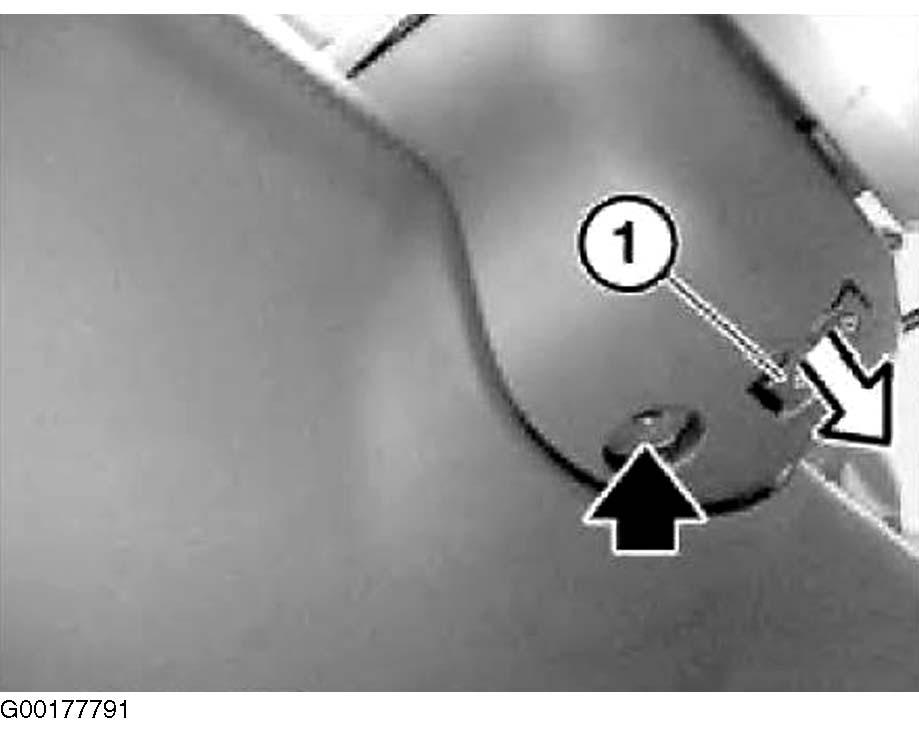

Fig 1: Levering Out Adjusting Switch

Courtesy of BMW OF NORTH AMERICA, INC.

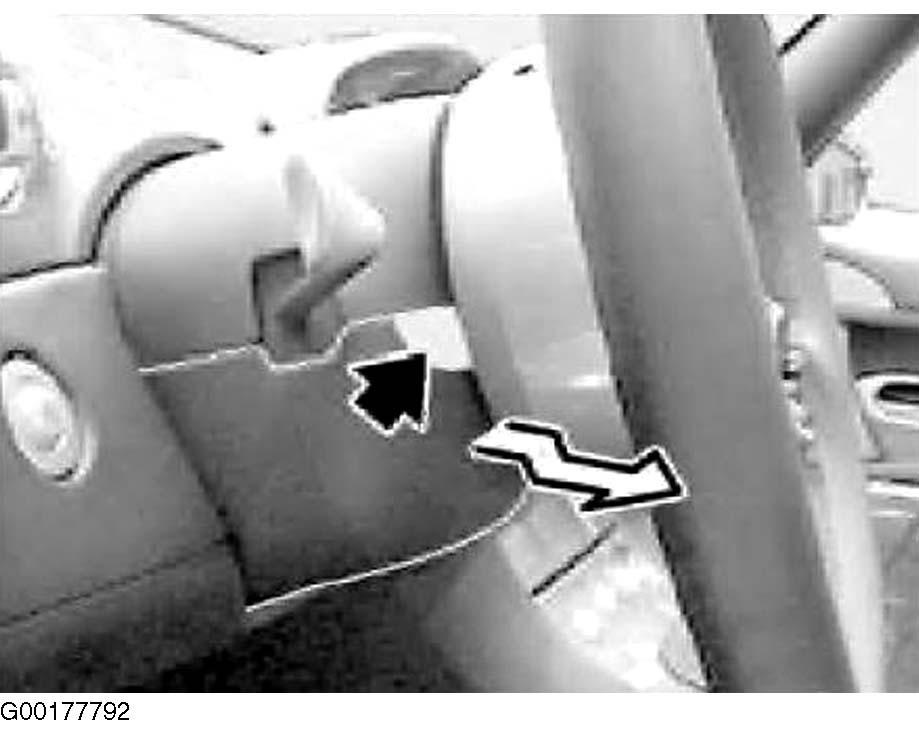

Fig 2: Removing Lower Steering Column Trim

Courtesy of BMW OF NORTH AMERICA, INC.

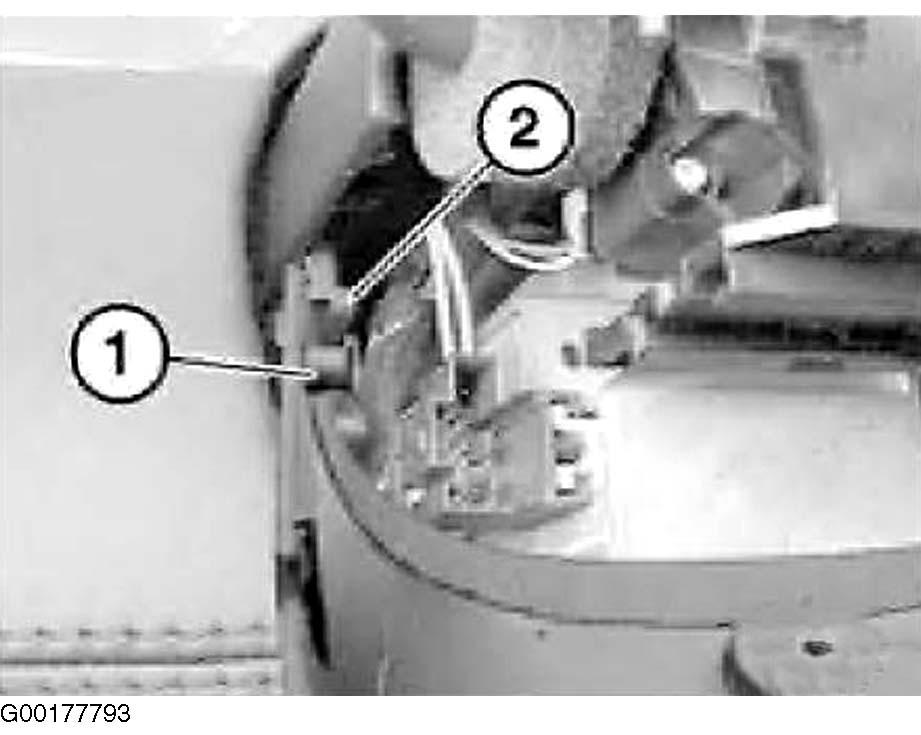

Fig 3: Installing Locking Unit

Courtesy of BMW OF NORTH AMERICA, INC.
