Removal & Installation

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine underguard.
  2. Release screw (1) and remove stabilizer link on left and right. Release screws (2) on stabilizer bar mountings on left and right. Remove stabilizer bar (3) with stabilizer bar mounting from front axle support. See Fig 1 .
  3. Installation is reverse of removal. Check stabilizer bar mounting and replace if necessary. Replace self-locking nuts and tighten to specification. See TORQUE SPECIFICATIONS  .

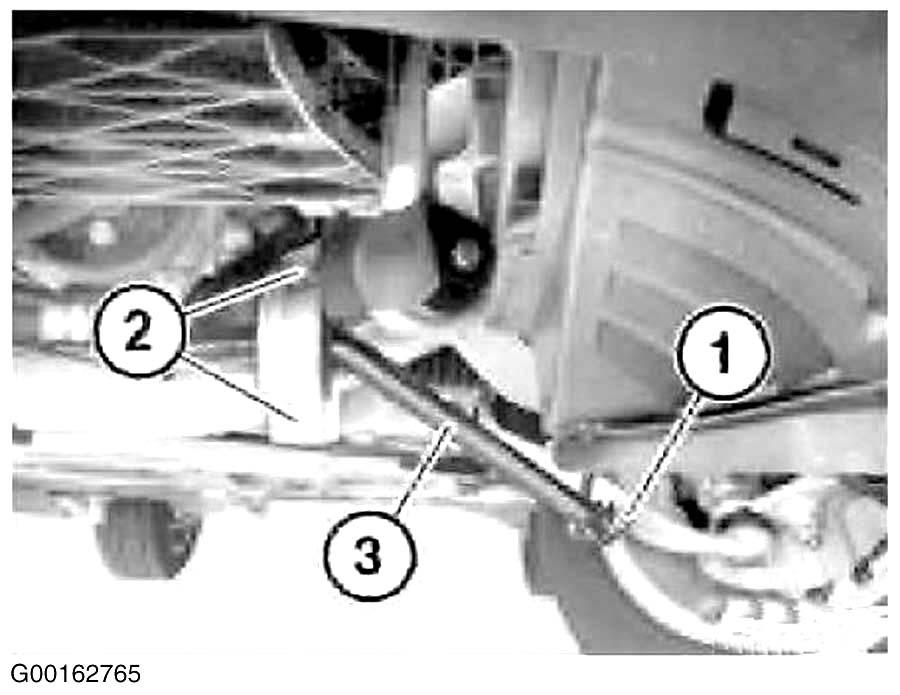

Fig 1: Removing Stabilizer Bar
G00162765Courtesy of BMW OF NORTH AMERICA, INC.
