Removal & Installation

(clutch removed)

Lock flywheel with special tool 11 2 170.

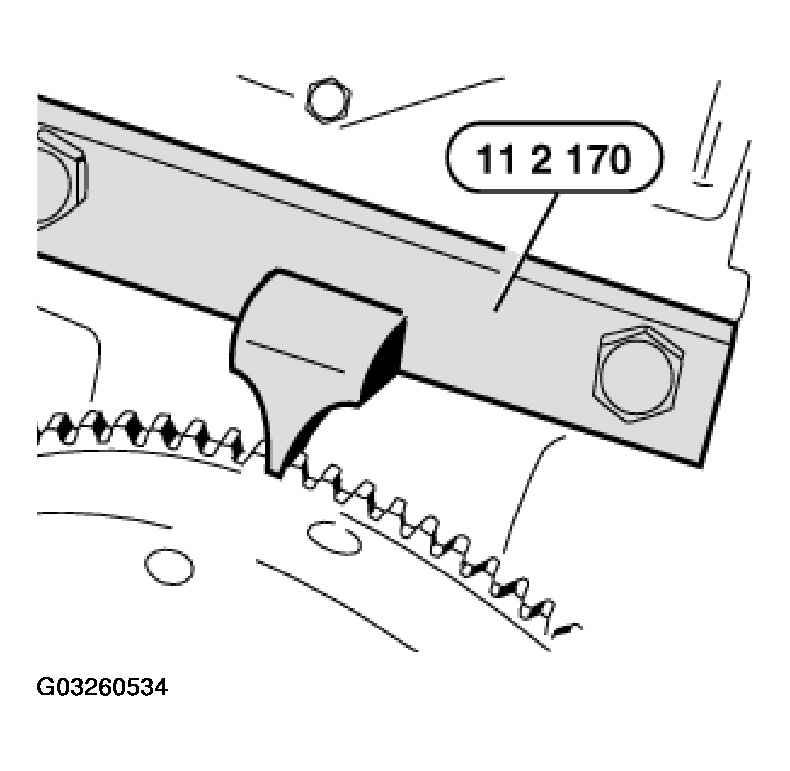

Fig 1: Locking Flywheel With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove flywheel.

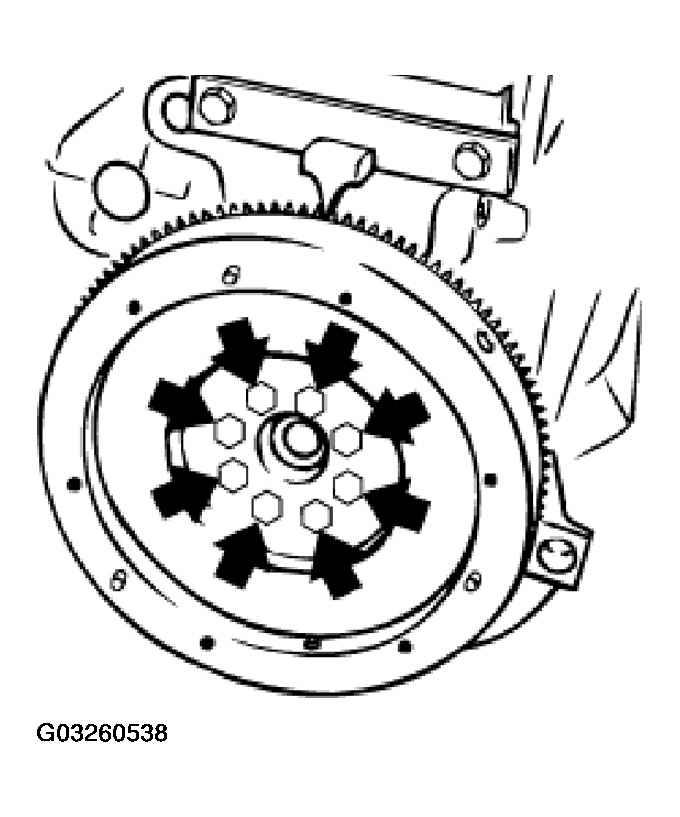

Fig 2: Unfastening Screws And Remove Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check dowel sleeve for damage and correct installation position.

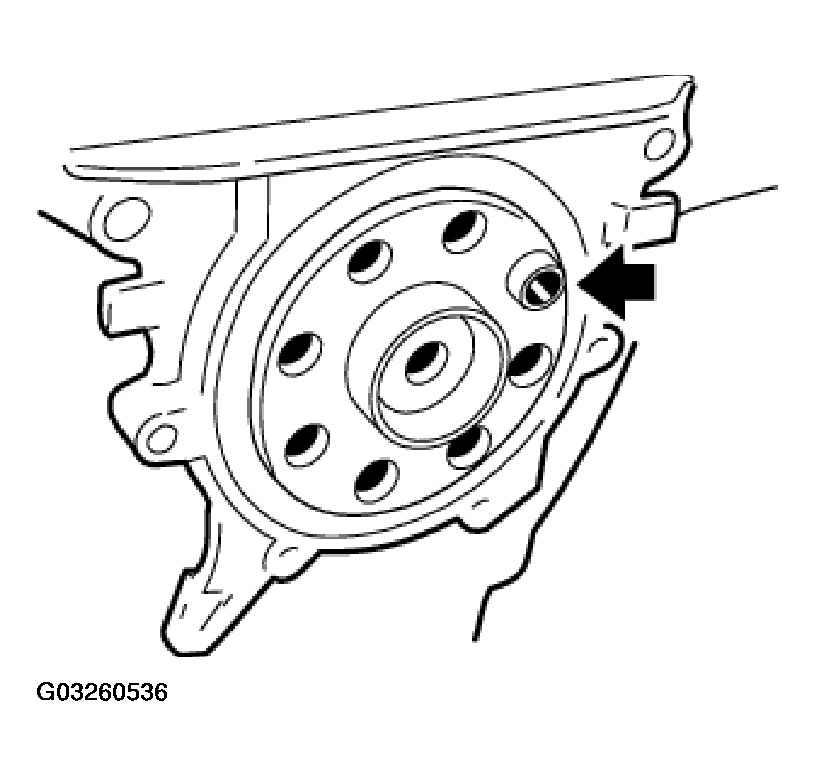

Fig 3: Checking Dowel Sleeve For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

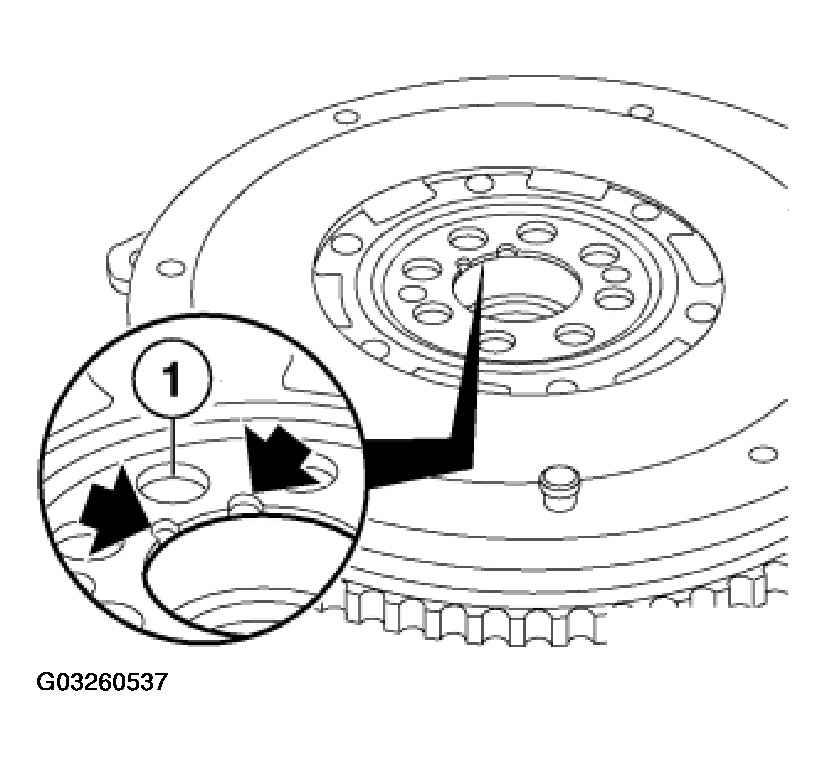

Position of dowel sleeve (1) in dual-mass flywheel is identified by two notches next to associated bolt hole.

Fig 4: Positioning Dowel Sleeve In Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean thread and install new micro-encapsulated screws.

Tightening torque, see 11 22 1AZ in ENGINE - TIGHTENING TORQUES .

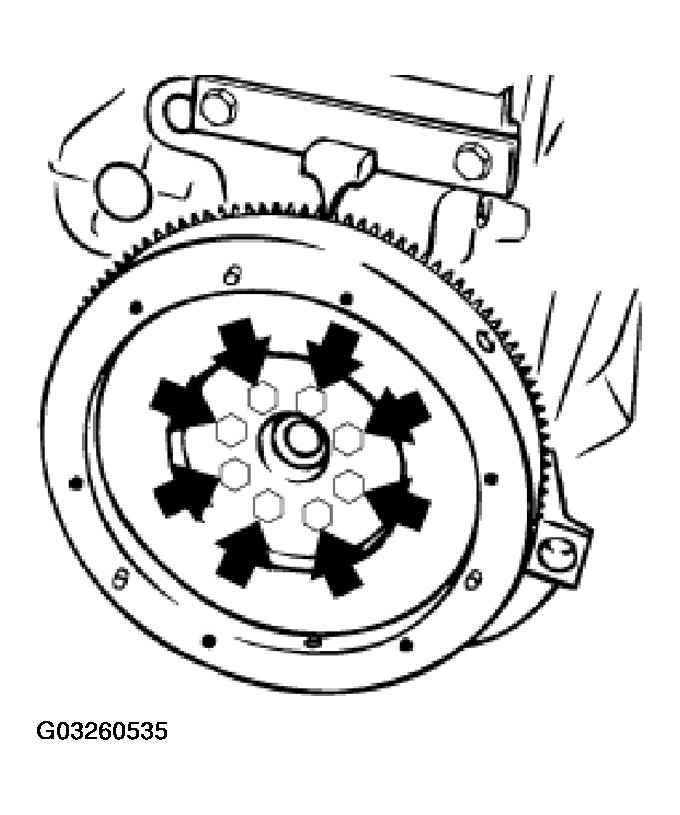

Fig 5: Installing Micro-Encapsulated Screws

Courtesy of BMW OF NORTH AMERICA, INC.
