62 11 280 Removing and installing (replacing) instrument cluster

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection). See BODY EQUIPMENT - REPAIR INSTRUCTIONS .

NOTE:

Comply with notes and instructions on handling fibre-optic cables. See 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Extend steering wheel completely and lower
Disconnect battery negative lead. See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .

IMPORTANT: Risk of damage!

Cover instrument panel (2) on both sides of instrument cluster (3) with suitable protective film (1) to prevent damage.

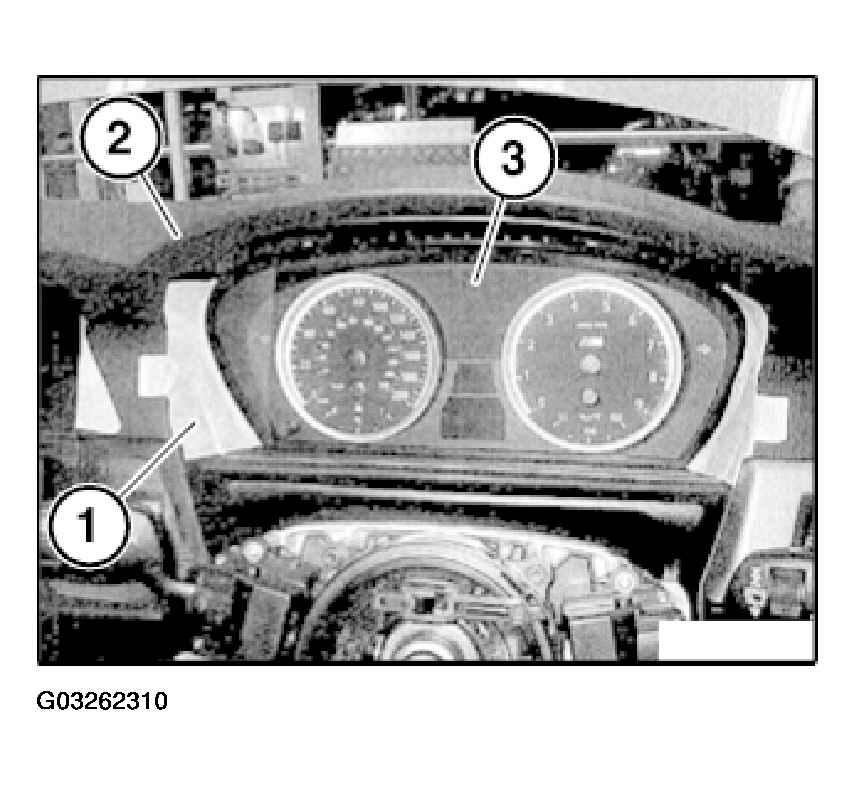

Fig 1: Covering Instrument Panel On Both Sides Of Instrument Cluster With Suitable Protective Film

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull back instrument cluster (2) slightly.

Unlock associated plug connection and disconnect.

Feed out/unclip associated wiring harness.

Remove instrument cluster (2).

Replacement:

Carry out programming/coding.

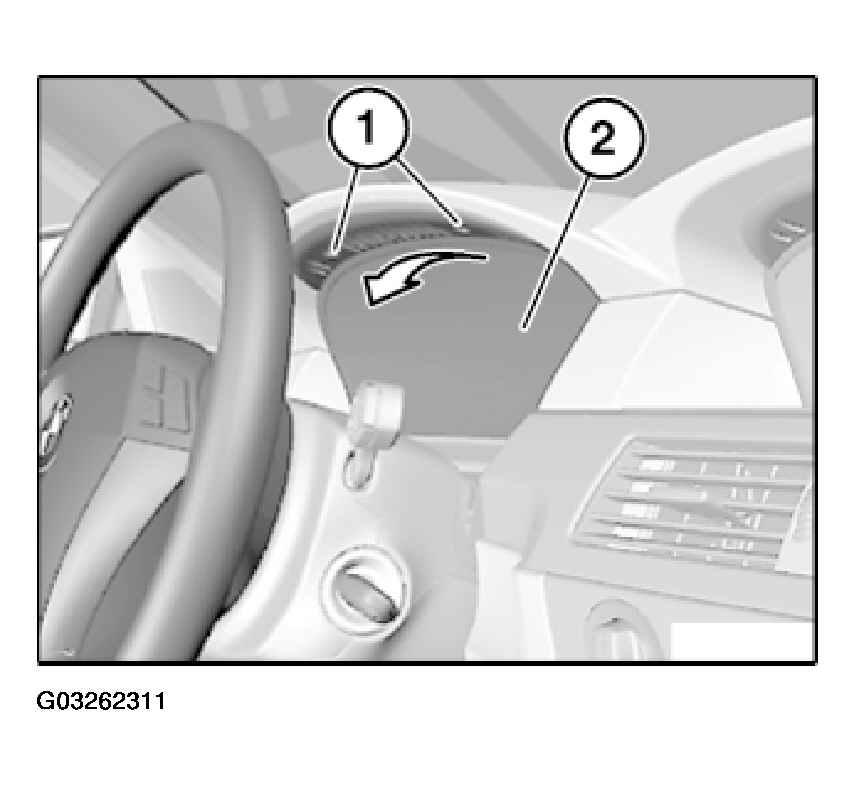

Fig 2: Releasing Screws And Pulling Back Instrument Cluster

Courtesy of BMW OF NORTH AMERICA, INC.
