62 30... Adjusting head-up display (display adjustment)
NOTE:
Display adjustment (correction of lopsided display) is possible from 12/2003.
The following text only describes display adjustment.
How to Adjust The Height Of The Head-Up Display is described separately.
NOTE:
Vehicles with head-up displays are fitted with special windshields.
These windshields are marked with the letters "HUD" on the outside at bottom right below the seal (1).
Prior to adjustment, fold seal (1) back and make sure that a correct windshield is fitted.
Necessary preliminary tasks:
- Check that windshield bears the "HUD" label
- Remove on-board monitor
- If necessary, cover windshield (to darken the adjustment image)
- Switch on head-up display.
- Call up test image 6 via diagnosis (BMW scan tool)

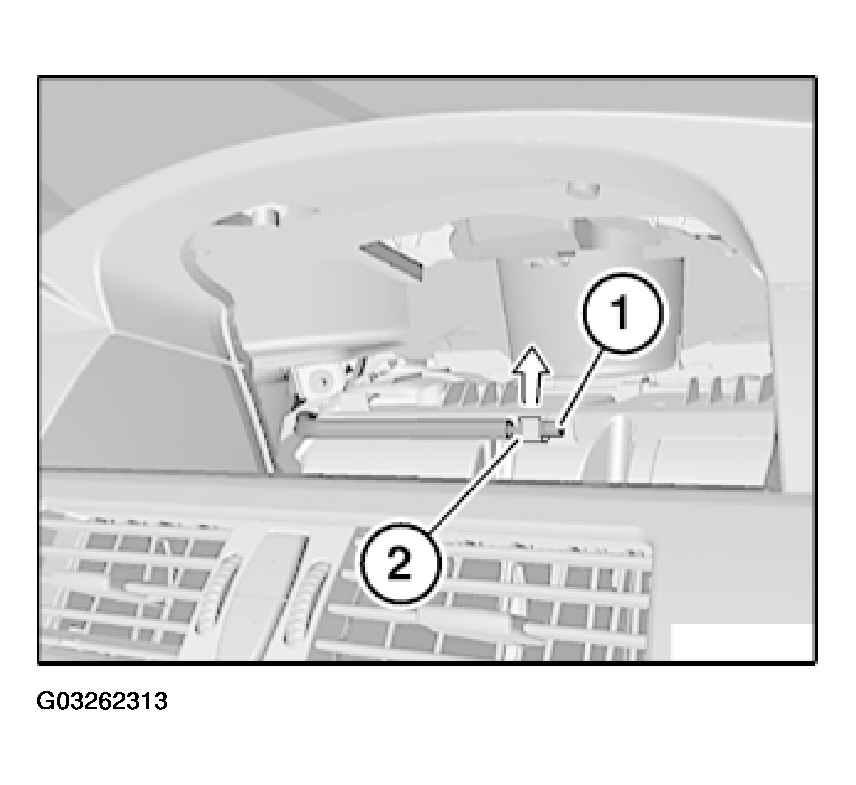

Unclip flexible shaft (1) in direction of arrow from holder (2).
IMPORTANT:
Turn flexible shaft (1) in clockwise direction
only, otherwise risk of breakage!
Turn flexible shaft (1) by hand for display adjustment.
