62 30 010 Removing and installing/replacing head up display
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection).
IMPORTANT:
Do not scratch head-up display lens!
Necessary preliminary tasks:
- Remove instrument panel trim
NOTE:
Comply with notes and instructions on handling optical waveguides.

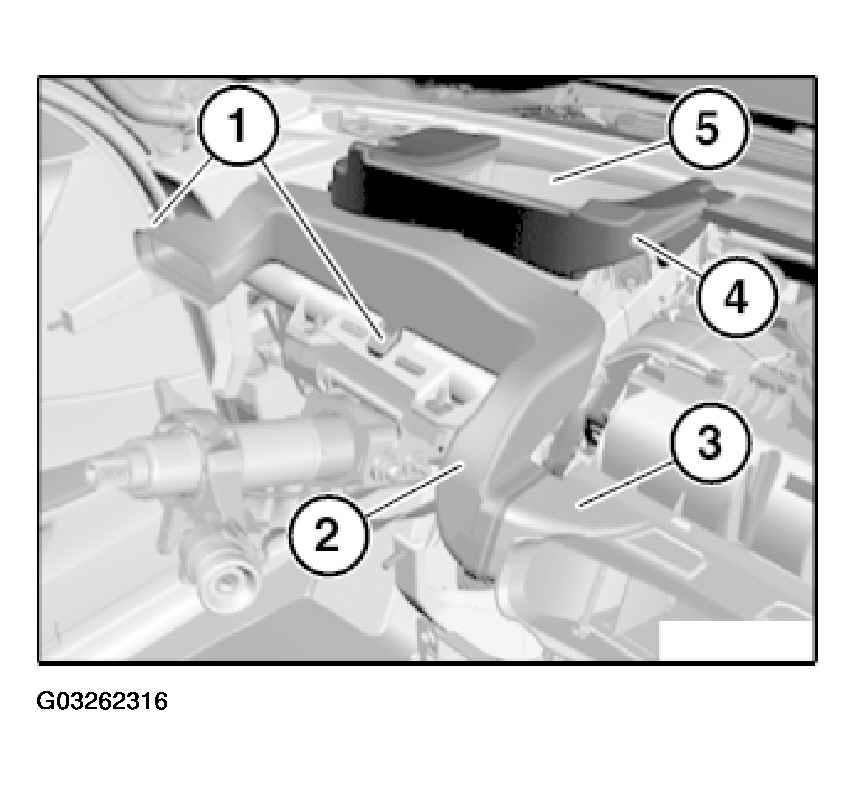

Release screws (1).
Remove air duct (2) from air distributor (3).
If necessary, remove fitted foam seal (4) from head-up display (5).
If necessary, unclip fitted flexible shaft (display adjustment).
Installation:
- Clean head-up display lens.
- Adjust head-up display (5).
- Make sure eccentric (2) is in correct installation position.
- If fitted, make sure flexible shaft is in correct installation position.

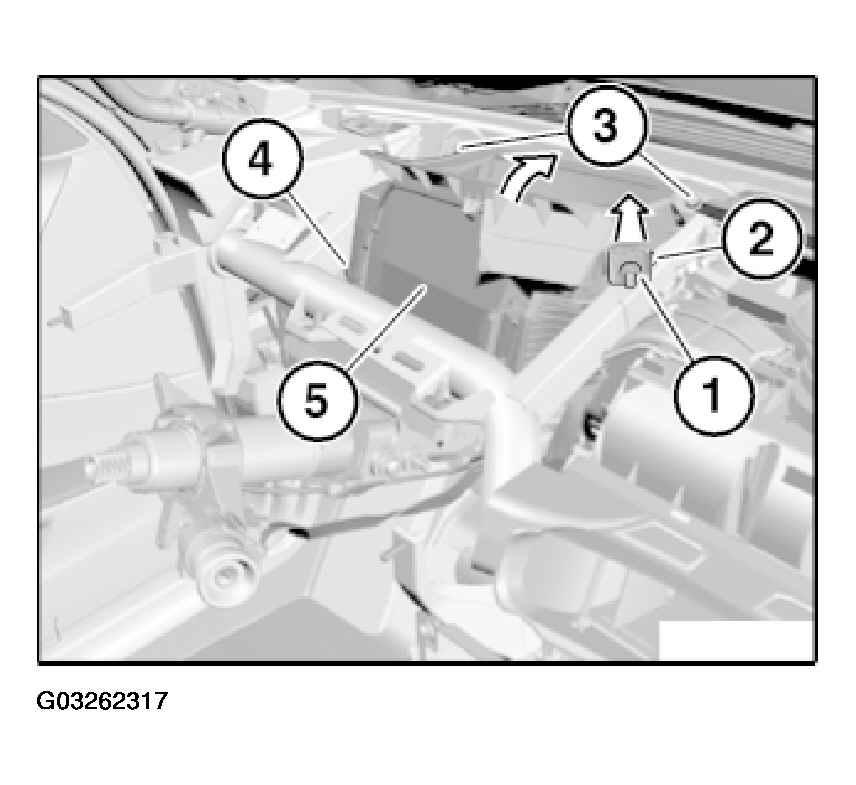

Release lock nut (1) and remove.
Remove eccentric (2) in direction of arrow.
Release screws (3).
Pull head-up display (5) back slightly and fold upwards.
Unlock and disconnect plug connection (4) and remove headup display (5).
Installation:

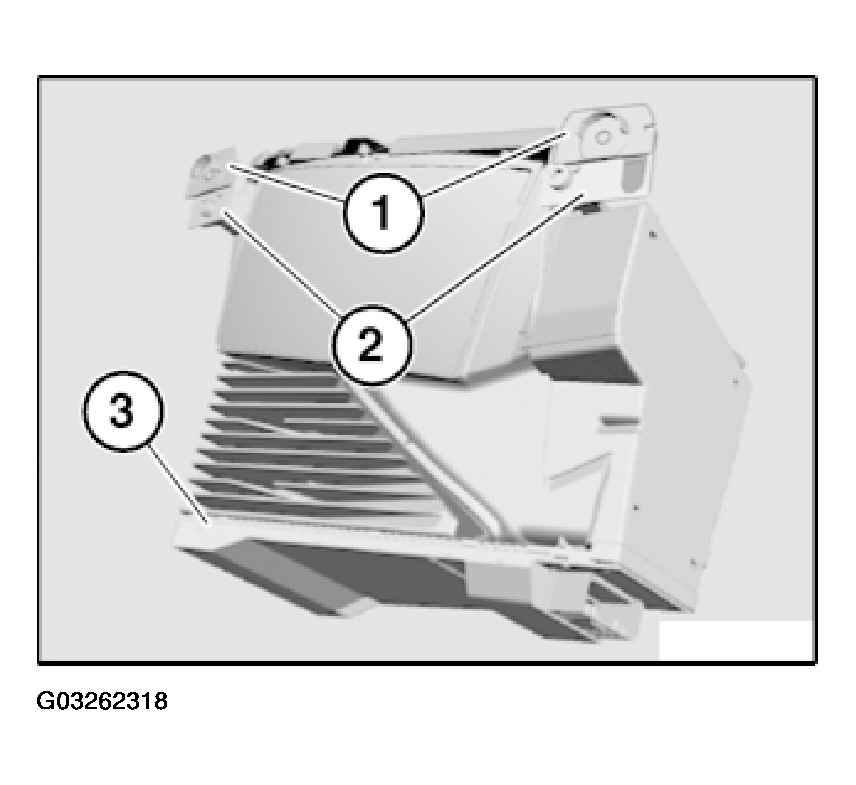

Make sure centering caps (1) are correctly seated on lugs (2) of head-up display (3).
Replacement:
Carry out programming/coding.
