62 30 005 Removing and installing/replacing trim for head-up display

Special Tools Required

Lever out trim for head-up display (1) with special tool 00 9 317 from mounting points (2).

Feed trim for head-up display (1) in direction of arrow out of instrument panel trim (2) and remove.

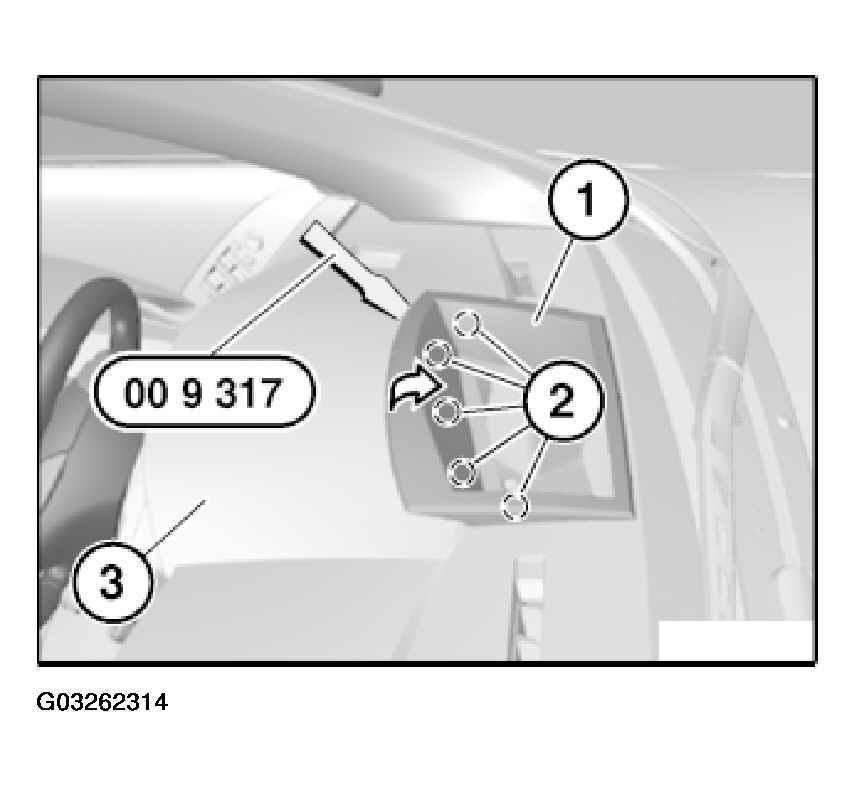

Fig 1: Levering Out Trim For Head-Up Display With Special Tool 00 9 317 From Mounting Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure retaining lugs (1) and (2) and sleeve (3) of trim for head-up display (4) are correctly seated.

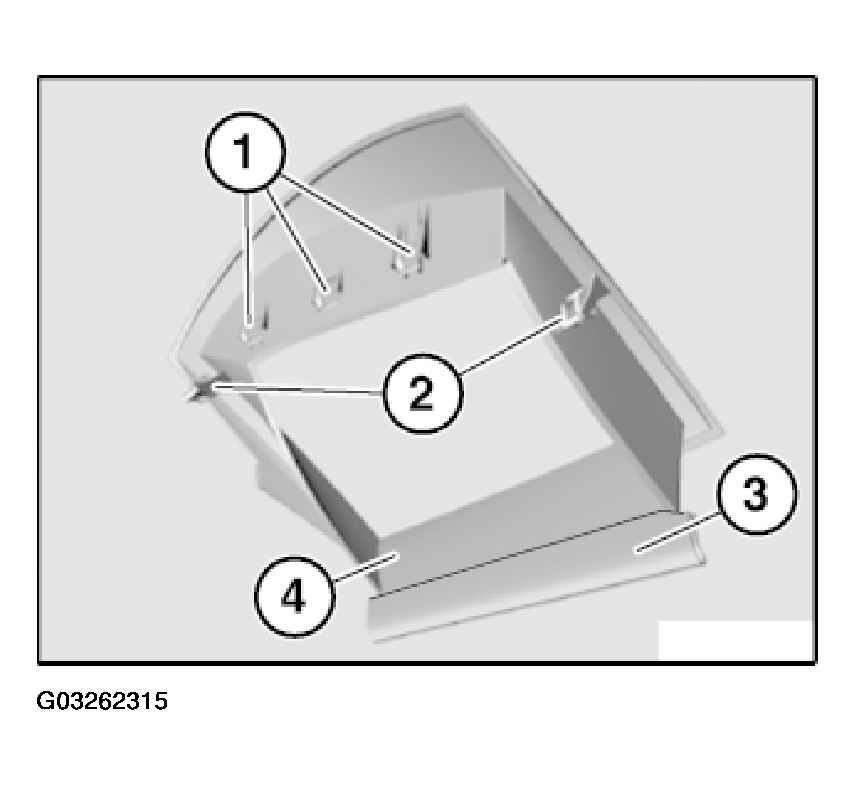

Fig 2: Identifying Retaining Lugs And Sleeve Of Trim For Head-Up Display Correctly Seated

Courtesy of BMW OF NORTH AMERICA, INC.
