Removal & Installation
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Draw hydraulic fluid out of tank. Do not re-use.
- Remove engine underguard.
- Remove drive belt.
- Disconnect suction and pressure lines from pump.

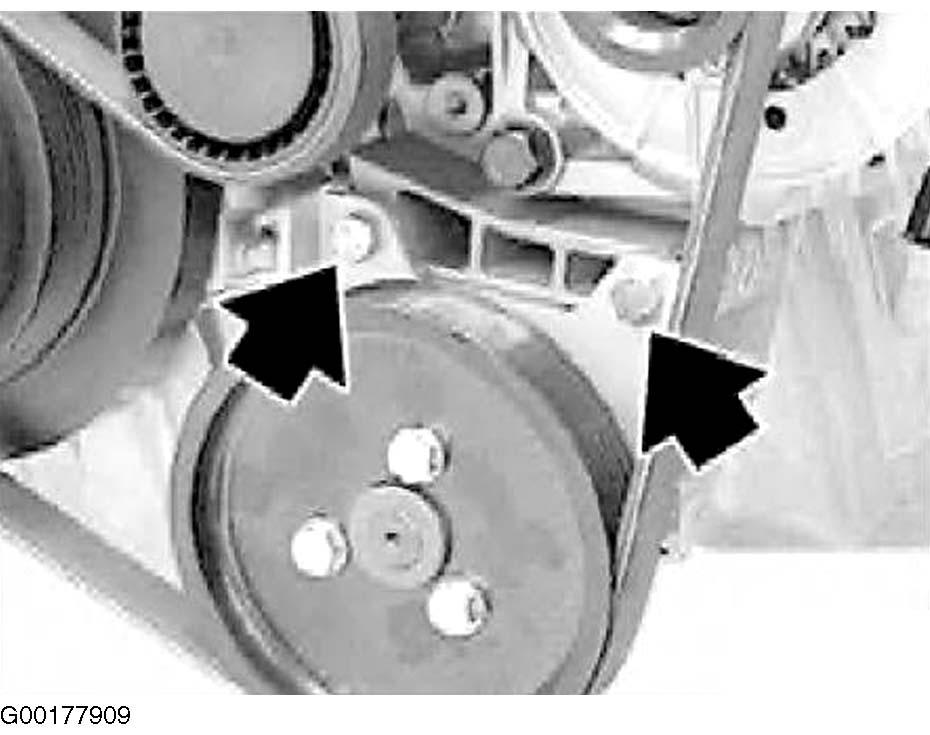

- Unfasten screws and remove pump. See Fig 1.
- To install, reverse removal procedure. Tighten suction and pressure lines to specification. See TORQUE SPECIFICATIONS .
- Fill hydraulic system. See BLEEDING POWER STEERING SYSTEM under LUBRICATION.
