Removal & Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear wheel. See FRONT SUSPENSION ASSEMBLY
If necessary, remove tank trim. See 16 11 030 REMOVING AND INSTALLING FUEL TANK
Open plug housing (1). Pull plug connection for ABS pulse sensor out of fixture and disconnect. See Fig 1.
Open cable fasteners (1). Pull cable out of fasteners on rear swinging fork. See Fig 2.
Remove hexagon socket screw (1) and remove wheel pulse sensor (2) from bore. See Fig 3.
To install, reverse removal procedure.
Clean and lubricate hole for wheel pulse sensor with Staburags NBU 12/K or equivalent.
Tighten hexagon socket screw to specification. See TORQUE SPECIFICATIONS .
Tighten wheel lug to specification. See TORQUE SPECIFICATIONS .

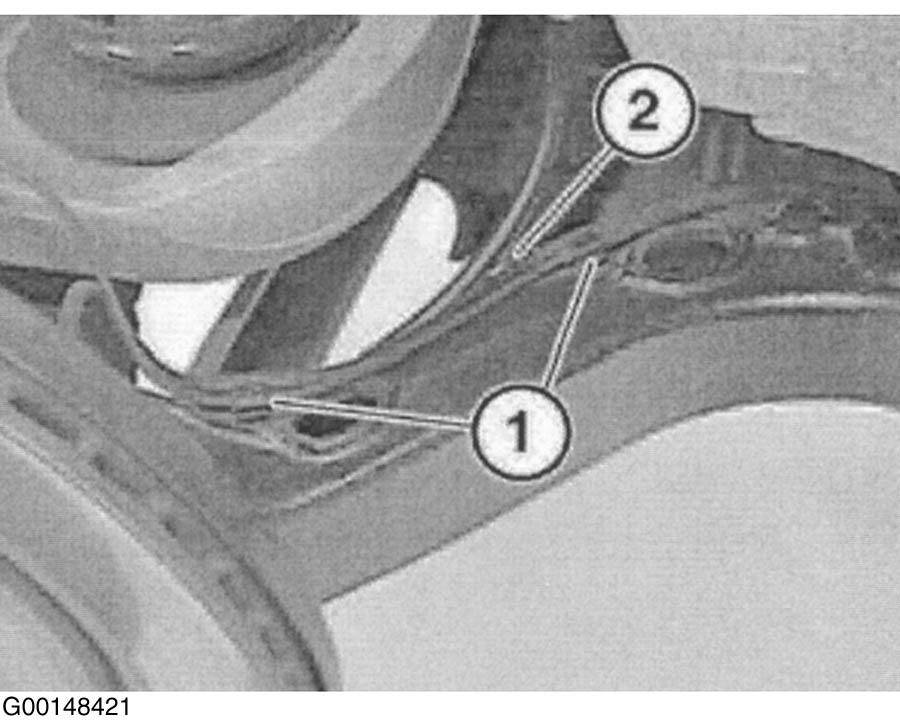

Fig 1: Opening Plug Housing (Rear Pulse Sensor)

Courtesy of BMW OF NORTH AMERICA, INC.

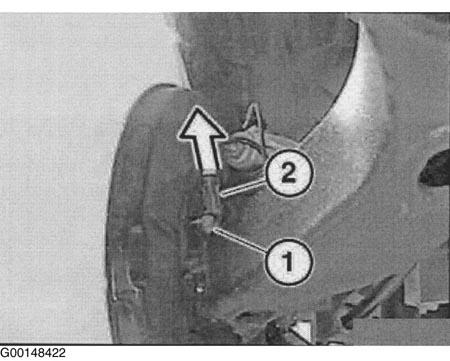

Fig 2: Locating Cable & Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Locating Hexagon Socket Screw

Courtesy of BMW OF NORTH AMERICA, INC.
