64 1 450 Spray unit
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
In conjunction with: Pressure vessel spray gun, manufacturer: SATA (81 45 9 429 217)
Note: For cleaning and disinfecting evaporator in A/C system
Series: E39, E46, E53, E83
SI number: 1 22 00(648)
Order number: 64 1 450

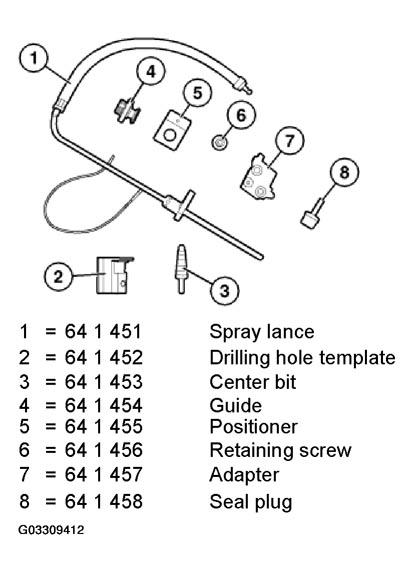

Spray unit
Consisting of:
1 = 64 1 451 Spray lance
2 = 64 1 452 Drilling hole template
Note: Model series: E39, E53 IHKA
3 = 64 1 453 Center bit
Note: Model series: E39, E53 IHKA
4 = 64 1 454 Guide
Note: Model series: E39, E53 IHKA
5 = 64 1 455 Positioner
Note: Model series: E39, E53 IHKA
6 = 64 1 456 Retaining screw
Note: Model series: E39, E53 IHKA
7 = 64 1 457 Adapter
Note: Model series: E46 IHKA/R Model series: E39, E53 IHKR
8 = 64 1 458 Seal plug
Note: Model series: E46 IHKA/R Model series: E39, E53 IHKR
