Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Note: For gripping crankshaft when releasing/tightening central bolt

Engine: N62, N62TU, N73

Storage location: A45, C42

SI number: 1 14 01 (766)

Order number: 11 9 450

Counter holder w/ socket & pointer

Consisting of:

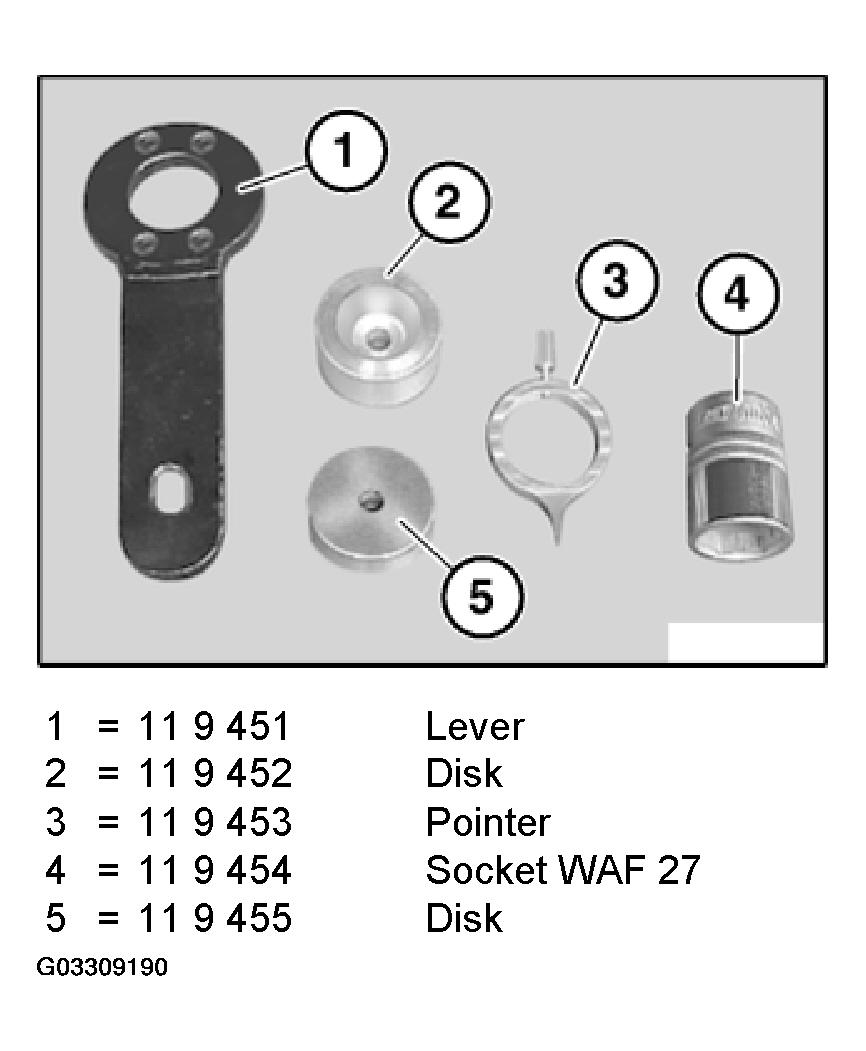

Fig 1: Identifying Counter Holder W/ Socket & Pointer

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 11 9 451 Lever

2 = 11 9 452 Disk

Note: Height 22.5 mm with hexagon screw

3 = 11 9 453 Pointer

4 = 11 9 454 Socket WAF 27

5 = 11 9 455 Disk

Note: Height 10 mm with hexagon screw
