11 9 430 Fixture
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Note: For pressure testing cylinder head
Engine: N62
SI number: 1 14 01(766)
Order number: 11 9 430

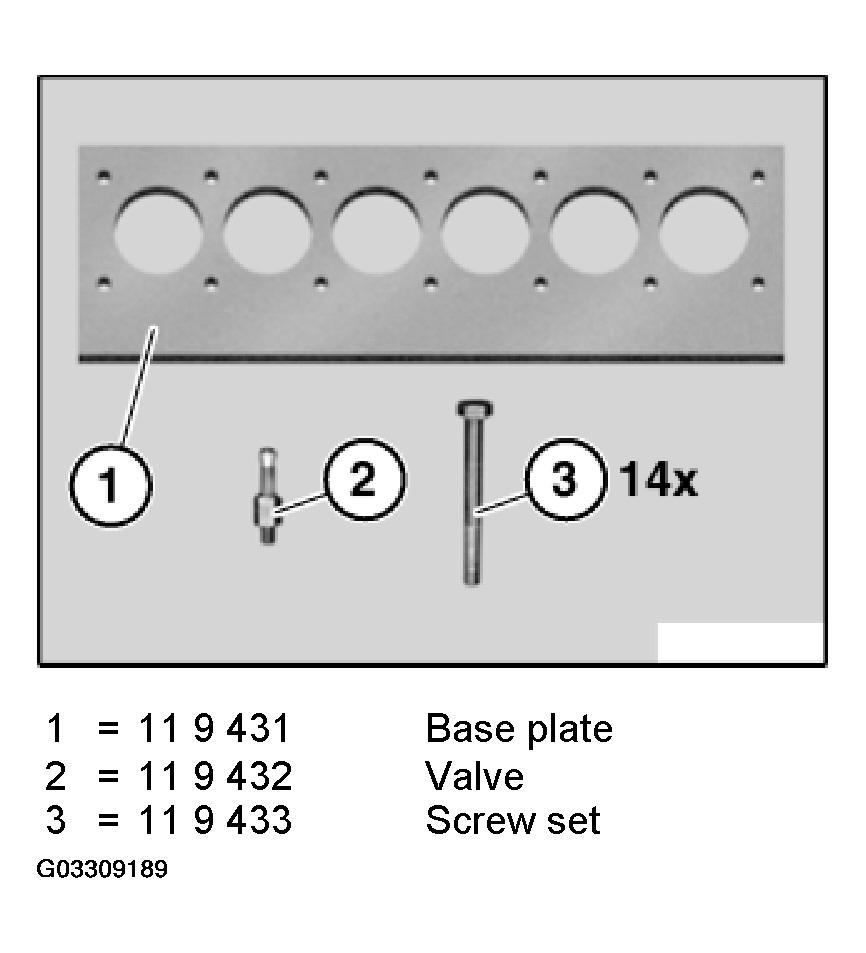

Fixture
Consisting of:
Courtesy of BMW OF NORTH AMERICA, INC.
1 = 11 9 431 Base plate
2 = 11 9 432 Valve
3 = 11 9 433 Screw set
