00 8 000 Hydraulic puller tool

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: With all previous removal/installation tools for rubber mounts

Note: For removing and installing rubber mount in rear axle carrier

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, R50, R52, R53, RR1

Storage location: Single

SI number: 1 02 99(417)

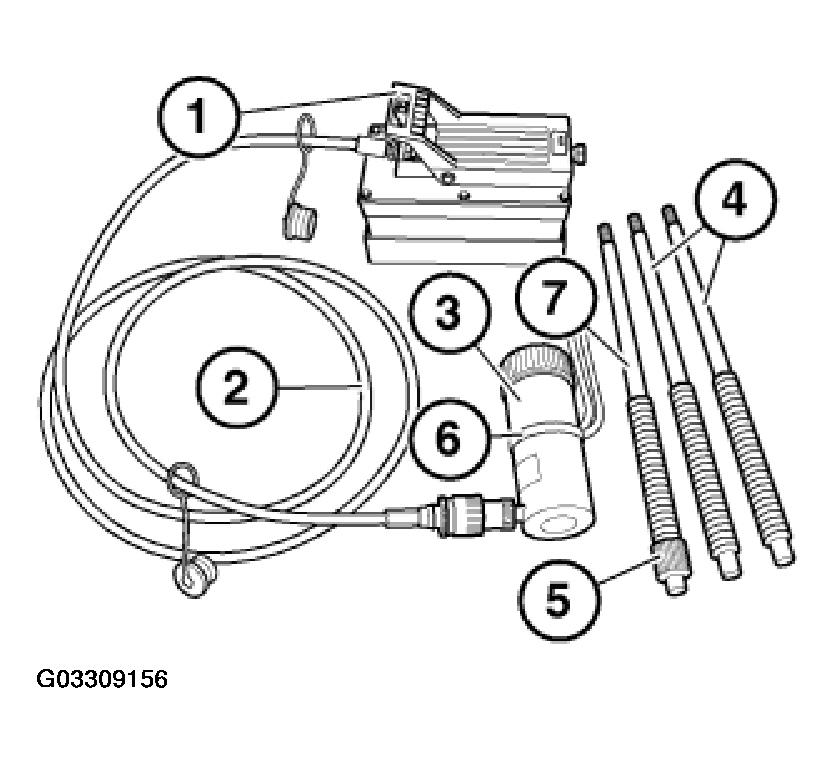

Fig 1: Identifying Hydraulic Puller Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 00 8 000

Hydraulic puller tool

Consisting of:

1 = 00 8 001 Hydraulic pump

2 = 00 8 002 Hydraulic hose

3 = 00 8 003 Hydraulic cylinder

00 8 004 Threaded spindle

Note: M14 x 520

00 8 005 Threaded spindle

Note: M12 x 496

00 8 006 Threaded spindle (optional)

Note: M14 x 465

00 8 007 Nut M18

00 8 008 Securing line

00 8 009 Spindle with nut
