00 0 180 Cable cabinet II, complete

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Note: For extended accommodation of adapter leads as well as measuring and test equipment

Series: All models

SI number: 0 02 99 (399)

Order number: 00 0 180

Cable cabinet II, complete

Consisting of:

1 = 00 0 191 Cable cabinet

Note: Not incl. contents or accessories, basic for cable cabinets I and II

2 = 00 0 182 Film sheet set II

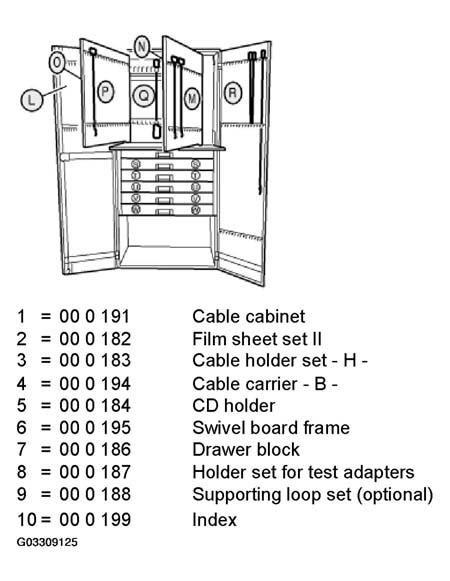

Fig 1: Identifying Cable Cabinet II, Complete

Courtesy of BMW OF NORTH AMERICA, INC.

Note: For identifying storage locations in cable cabinet II - applicable status in each case

3 = 00 0 183 Cable holder set - H -

Note: For cable cabinet II only 16 guide rails each with 15 supporting loops for accommodating adapter leads - applicable status in each case

4 = 00 0 194 Cable carrier - B -

Note: For accommodating engine test leads For expanding cable suspensions in cable cabinets I and II

5 = 00 0 184 CD holder

Note: For accommodating two program CDs with sleeve - Can be fitted in cable cabinets I and II

6 = 00 0 195 Swivel board frame

Note: Carrier for cable suspensions in cable cabinets I and II

7 = 00 0 186 Drawer block

Note: For cable cabinet II only

8 = 00 0 187 Holder set for test adapters

Note: For cable cabinet II only 9 = 00 0 188 Supporting loop set (optional)

Note: 20 supporting loops for cable holder - H - For expanding cable suspensions in cable cabinets I and II

10 = 00 0 199 Index

Note: For locating BMW special tools for motor-vehicle electrics in cable cabinets I and II
