Minimum set: Measuring and testing equipment

WARNING: This page is about a different car, the 2003 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For optical fibres and cable repair

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E65, E66, E67, E85, R50, R53, RR1

SI number: 1 14 01(766)

Order number: 61 4 320

Crimping set with pliers

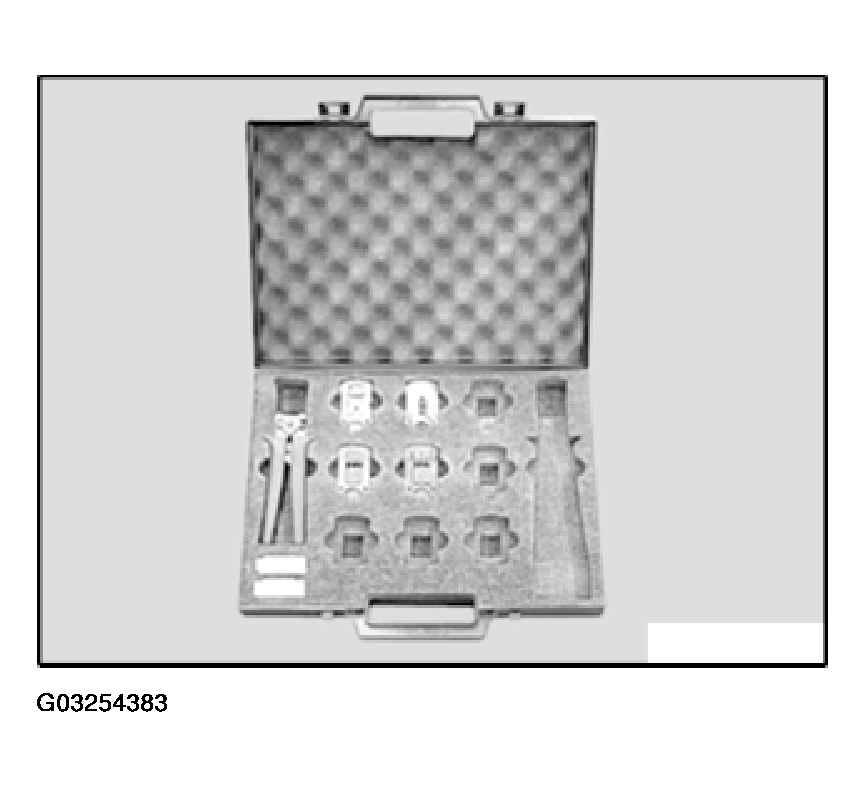

Fig 1: Identifying 61 4 320 Crimping Set With Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 61 4 321 Pliers without crimping head

2 = 61 4 322 Crimping head

NOTE: For stripping insulation and cutting fiber optic cable to length

3 = 61 4 323 Crimping head

NOTE: For crimping fiber optic cable contacts

4 = 61 4 324 Crimping head

NOTE: For crimping MQS contacts

5 = 61 4 325 Crimping head

NOTE: For crimping MPQ contacts

6 = 61 4 326 Substitute blade

NOTE: For face-cutting fiber optic cables

7 = 61 4 327 Substitute blade

NOTE: With tool for replacing blade in cable stripping unit
