Minimum set: Measuring and testing equipment

WARNING: This page is about a different car, the 2003 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For measuring and test purposes

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E53

Storage location: C 102, G 103, G 104, G 105, G 106, G 107, G 108, G 109

Order number: 61 1 470

Set of leads (6)

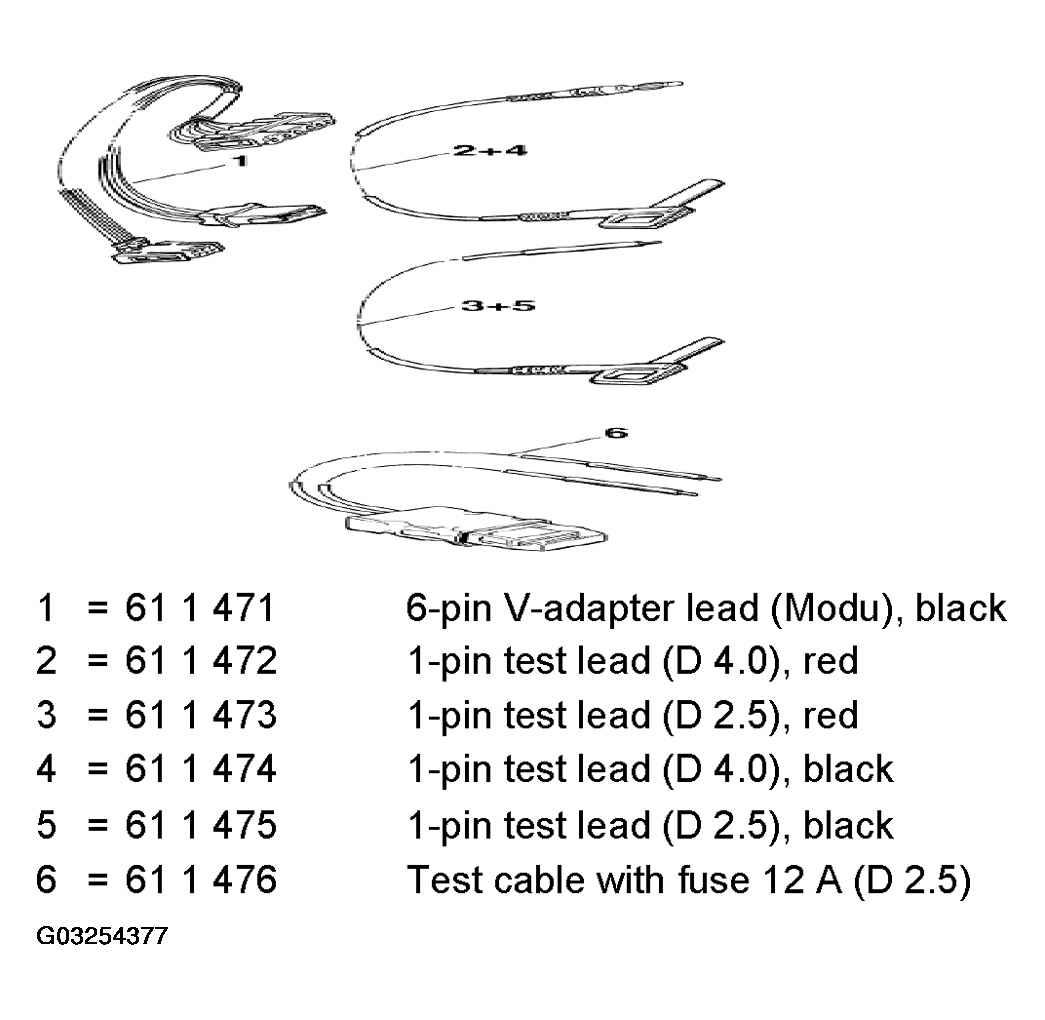

Fig 1: Identifying 61 1 470 Set Of Leads (6)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 61 1 471 6-pin V-adapter lead (Modu), black

NOTE: For IHR/IHKA stepper motors - Series: E31, E32, E34

2 = 61 1 472 1-pin test lead (D 4.0), red

3 = 61 1 473 1-pin test lead (D 2.5), red

4 = 61 1 474 1-pin test lead (D 4.0), black

5 = 61 1 475 1-pin test lead (D 2.5), black

6 = 61 1 476 Test cable with fuse 12 A (D 2.5)
