Minimum set: Mechanical tools

WARNING: This page is about a different car, the 2003 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For circular connector / ejector tool - Contains the kits 61 1 130, 61 1 140 and 61 1 180

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E65, E66, E83, E85, R50, R53, RR1

Storage location: K 106

Order number: 61 1 150

Releasing tool kit

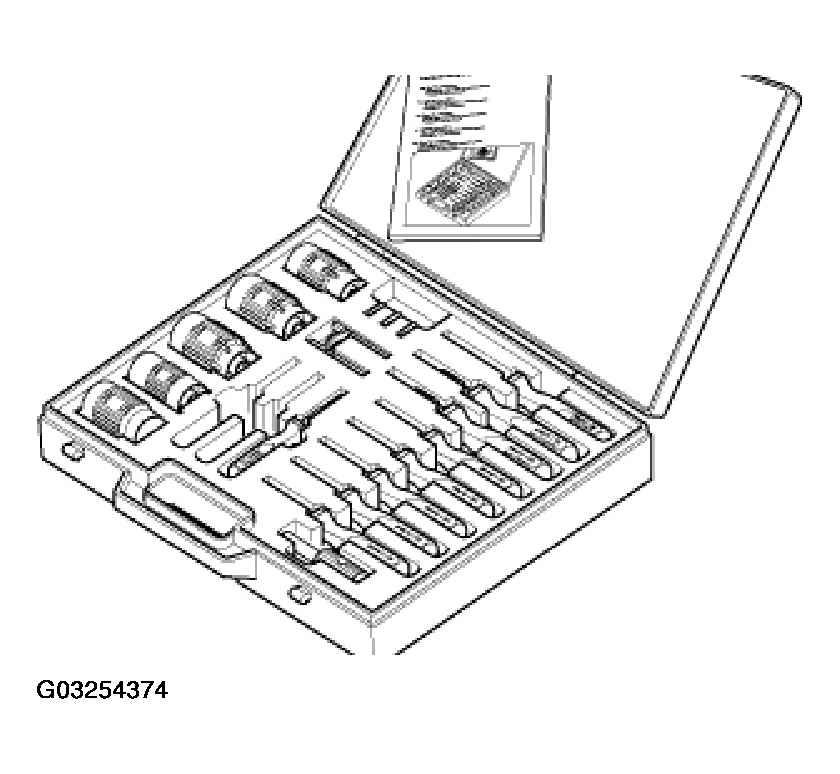

Fig 1: Identifying 61 1 150 Releasing Tool Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

61 1 151 Pressing-out tool

NOTE: For Power-Timer contacts / AMP and Bosch

61 1 152 Pressing-out tool

NOTE: For Micro-Timer contacts

61 1 153 Release tool

NOTE: For retaining tabs of relay holder

61 1 154 Replacement sleeve dia. 1.5 mm for 61 1 139

NOTE: Order number was reserved in 8/95 on delivery of case temporarily for case insert

61 1 155 Replacement sleeve dia. 3.5 mm for 61 1 133

61 1 156 Replacement sleeve dia. 2.5 mm for 61 1 132

61 1 157 Replacement sleeve dia. 1.5 mm for 61 1 131

61 1 158 Case with insert

61 1 159 Operating instructions

61 1 131 Pressing-out tool

NOTE: For 1.5 mm round contacts

61 1 132 Pressing-out tool

NOTE: For 2.5 mm round contacts

61 1 133 Pressing-out tool

NOTE: For 3.5 mm round contacts

61 1 134 Pressing-out tool

NOTE: For mini flat spring contacts

61 1 135 Pressing-out tool

NOTE: For standard flat spring contacts

61 1 136 Pressing-out tool

NOTE: For Power-Timer contacts (G & H)

61 1 137 Pressing-out tool

NOTE: For Timer contacts

61 1 138 Socket wrench

NOTE: For telltale lamps (instrument cluster)

61 1 139 Pressing-out tool

NOTE: Slotted sleeve for 1.5 mm dia. Kostal round contacts

61 1 141 Release tool

NOTE: For D 2.5 / ELA, 4-pin, round

61 1 142 Release tool

NOTE: For D 2.5 / ELA, 7-pin, round

61 1 143 Release tool

NOTE: For D 2.5 / ELA, 12-pin, round

61 1 144 Release tool

NOTE: For D 2.5 / ELA, 25-pin, round

61 1 145 Release tool

NOTE: For D 1.5 / ELA 10-pin round

61 1 149 Replacement blades

NOTE: For pressing-out tool 61 1 148

61 1 148 Pressing-out tool for SLC

NOTE: SLK = Sensor Laminated Contacts

61 1 180 Pressing-out tool

NOTE: For load current contacts This individual tool belongs to 61 1 150
