84 50 010 Removing and installing/replacing telephone antenna

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear spoiler lower section. Refer to 51 71 415 REMOVING AND INSTALLING REAR SPOILER LOWER SECTION .

Release nuts (1) and remove telephone antenna (2).

Disconnect antenna plug.

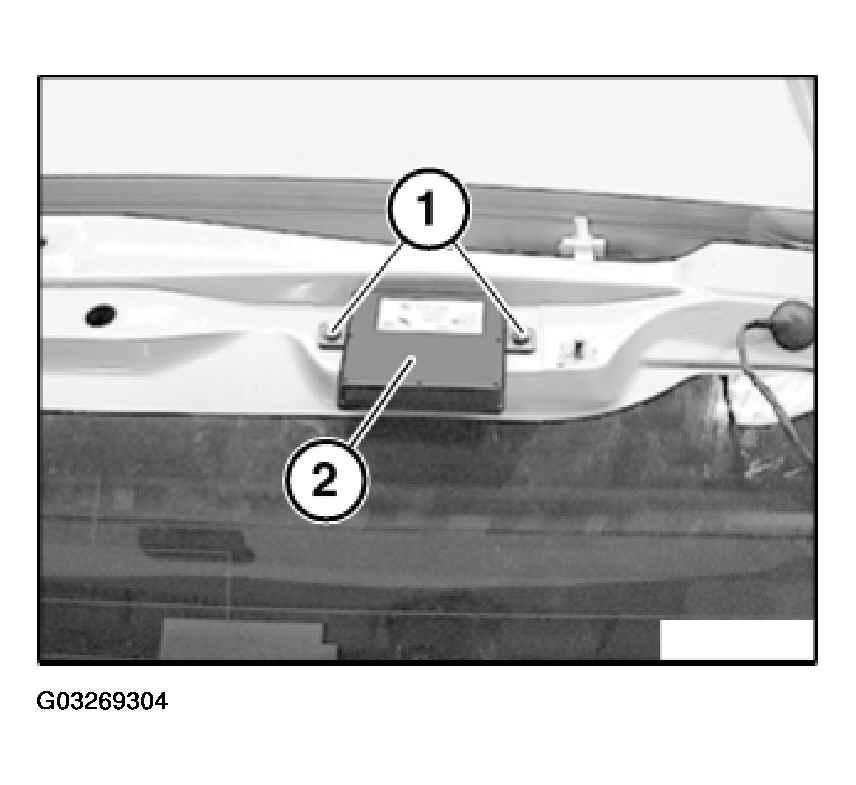

Fig 1: Identifying Telephone Antenna
G03269304Courtesy of BMW OF NORTH AMERICA, INC.
