65 52 023 Replacing panel for on-board monitor (control panel, widescreen)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Remove complete on-board monitor (widescreen). Refer to 65 52 013 REMOVING AND INSTALLING COMPLETE ONBOARD MONITOR (WIDESCREEN) .

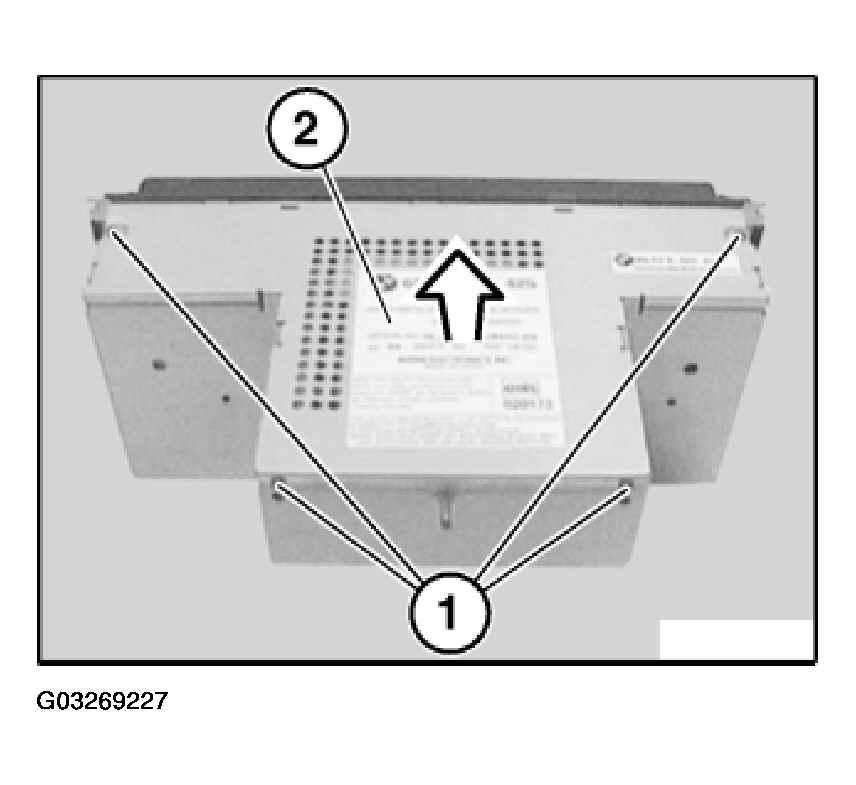

Release screws (1).

Remove upper housing section (2) in direction of arrow.

Fig 1: Removing Upper Housing Section

G03269227

Courtesy of BMW OF NORTH AMERICA, INC.

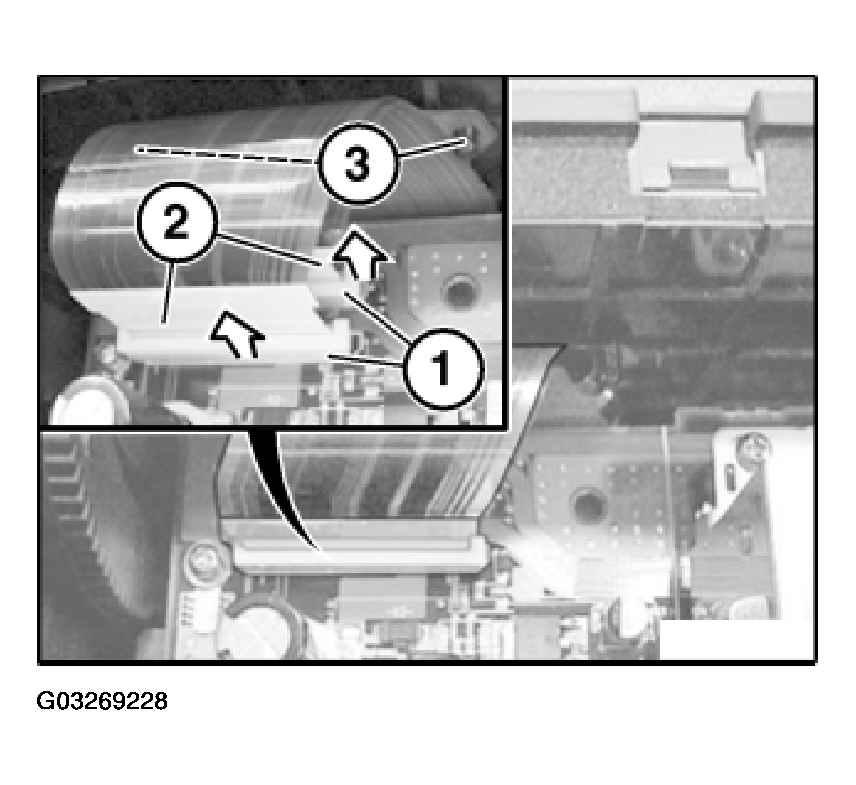

Raise locks (1) in direction of arrow.

Detach ribbon cables (2) and feed out at catches (3).

Installation:

Make sure ribbon cables are correctly seated.

Fig 2: Identifying Ribbon Cables

G03269228

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carefully feed out ribbon cables when removing panel for onboard monitor (control panel).

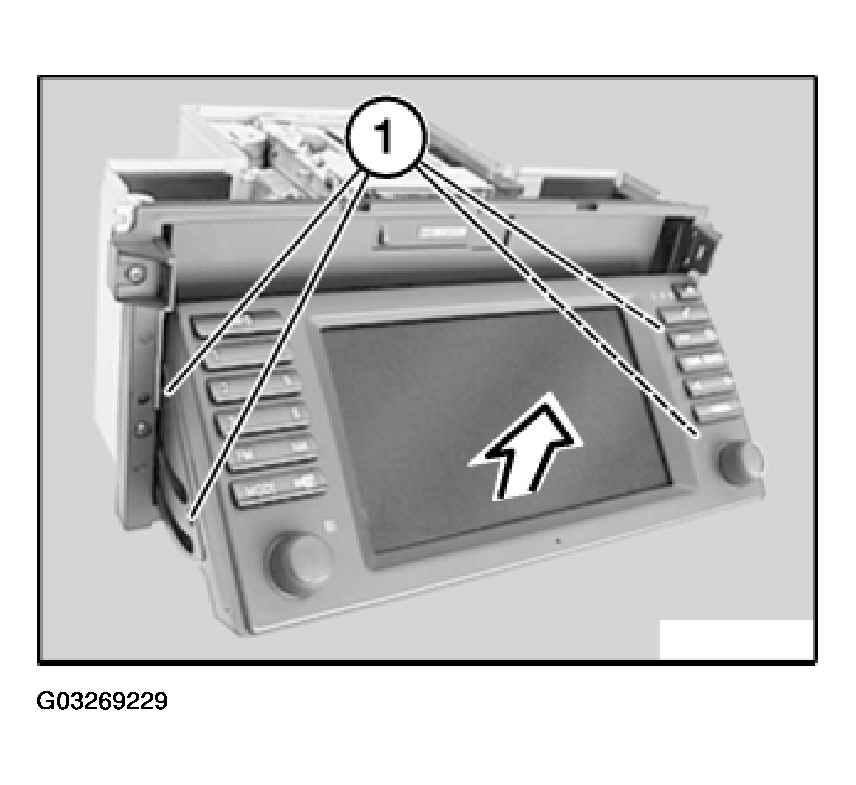

Release screws (1).

Remove panel for on-board monitor (control panel) in direction of arrow.

Fig 3: Locating Retaining Screws For Panel

G03269229

Courtesy of BMW OF NORTH AMERICA, INC.
