65 13 050 Removing and installing/replacing speaker (in instrument panel, left or right)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For purposes of clarity, illustration shows component removed.

Lever out trim (1) with special tool 00 9 340.

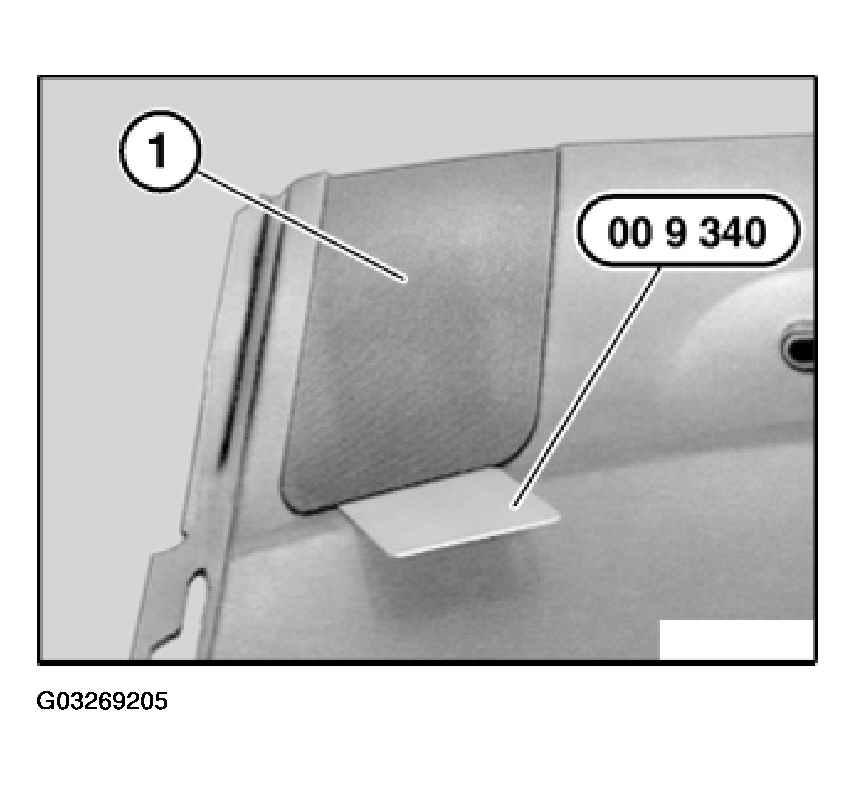

Fig 1: Removing Trim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove speaker (2).

Disconnect plug.

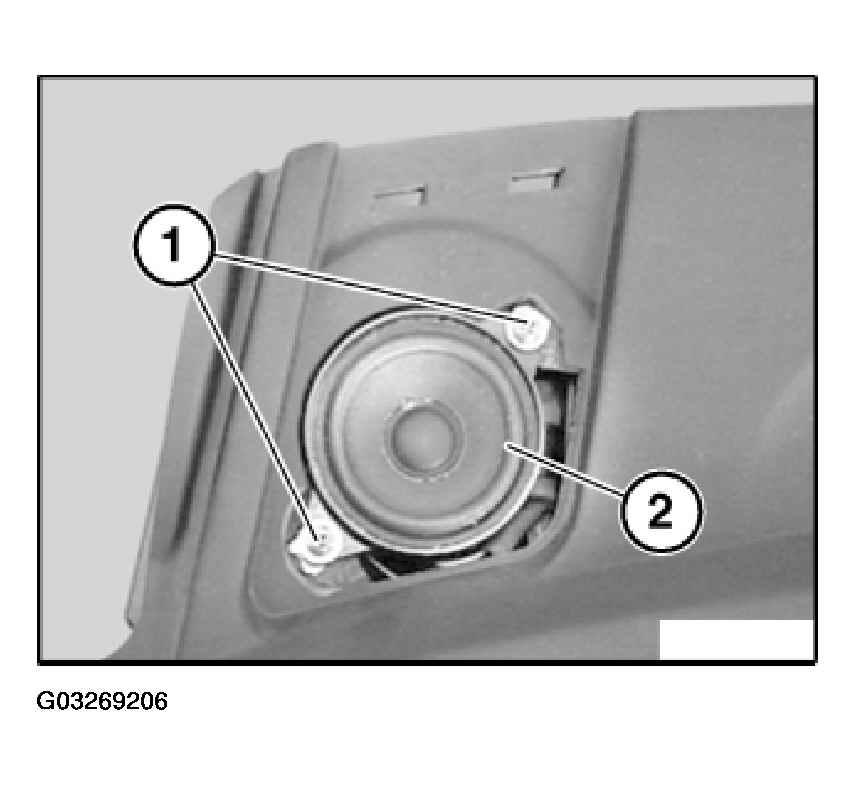

Fig 2: Locating Speaker Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
