65 24 013 Removing and installing/replacing antenna amplifier (side window)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove window cavity cover strip, inside, for door window, rear left

Disconnect plug connection (1).

Release knurled nut (2) and disconnect antenna plug (3).

Release screw (4) and remove antenna amplifier (5).

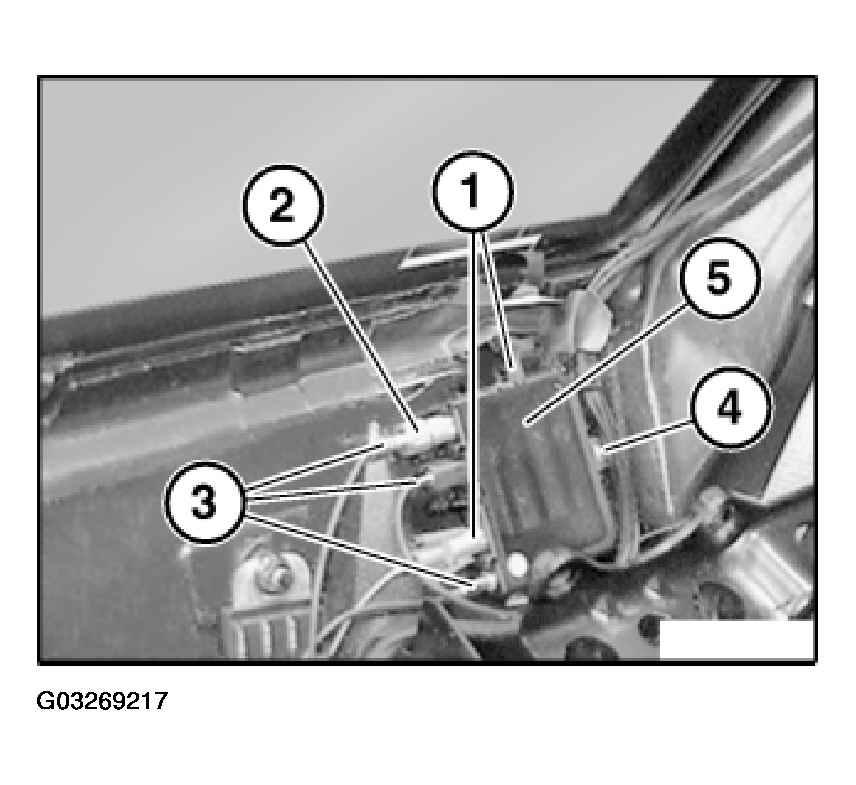

Fig 1: Removing Antenna Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.
