65 90 520 Removing and installing/replacing receiver module of Global Positioning System (GPS)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Release nut (1) gently and release nut (2).

Remove receiver module (3).

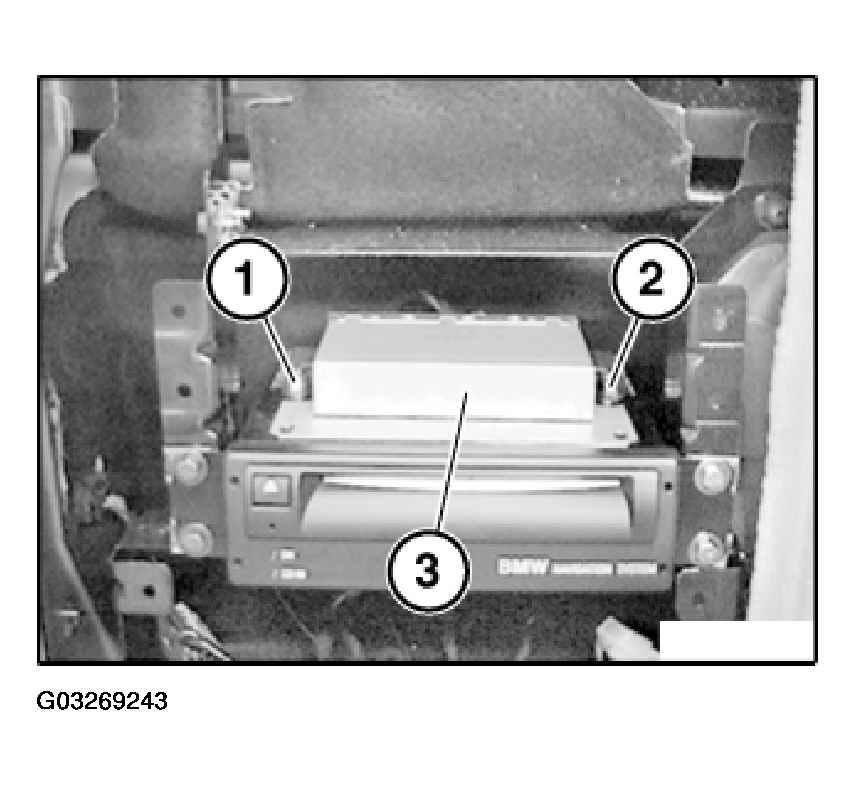

Fig 1: Locating Receiver Module Retaining Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect antenna plug (1) and plug connection (2).

Remove receiver module (3).

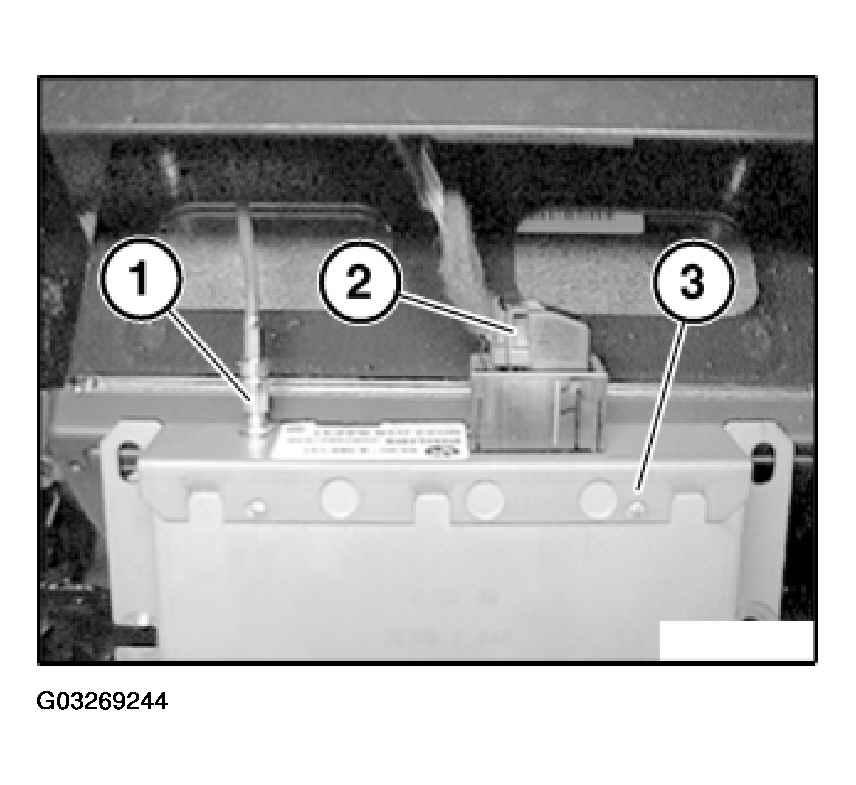

Fig 2: Removing Receiver Module

Courtesy of BMW OF NORTH AMERICA, INC.
