65 90 510 Removing and installing/replacing navigation computer with CD-drive
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see AUDIO, NAVIGATION & ANTI-THEFT - SPECIAL TOOLS - X5 (N62/E53) and ENGINE- SPECIAL TOOLS - X5 (N62/E53) .
Special Tools Required:
- 11 4 190
- 65 5 400
Replacement:
Load operating software and carry out coding (refer to DIS).
Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

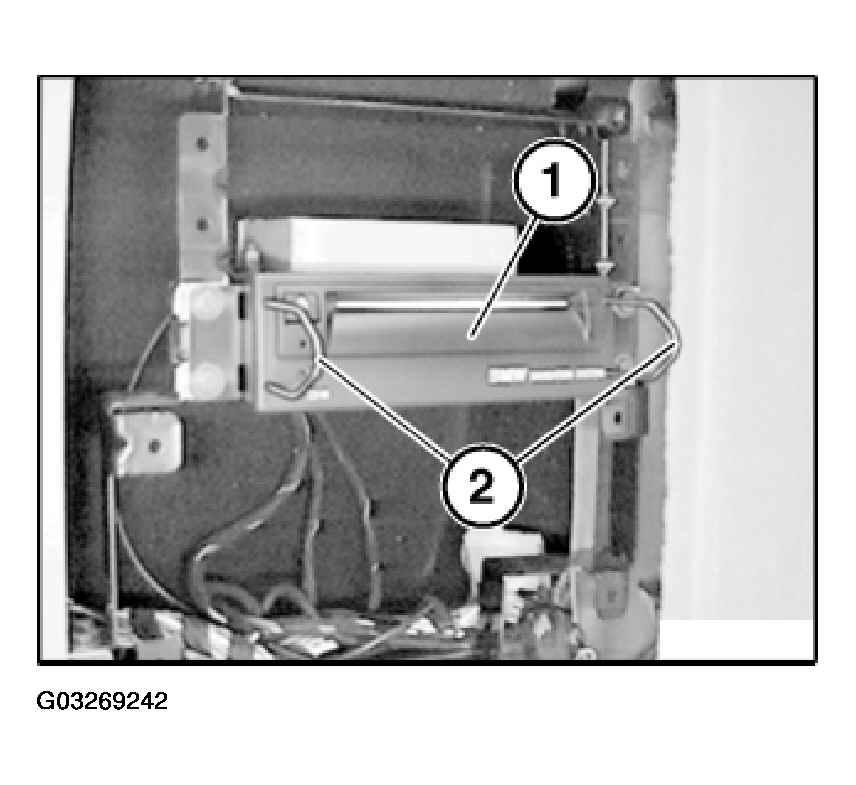

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.
Unfasten plug connection.
