65 75 565 Removing and installing/replacing ultrasound module

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Lever out ceiling light (1) in direction of arrow and disconnect plug connection.

Remove trim (2) and disconnect plug connection.

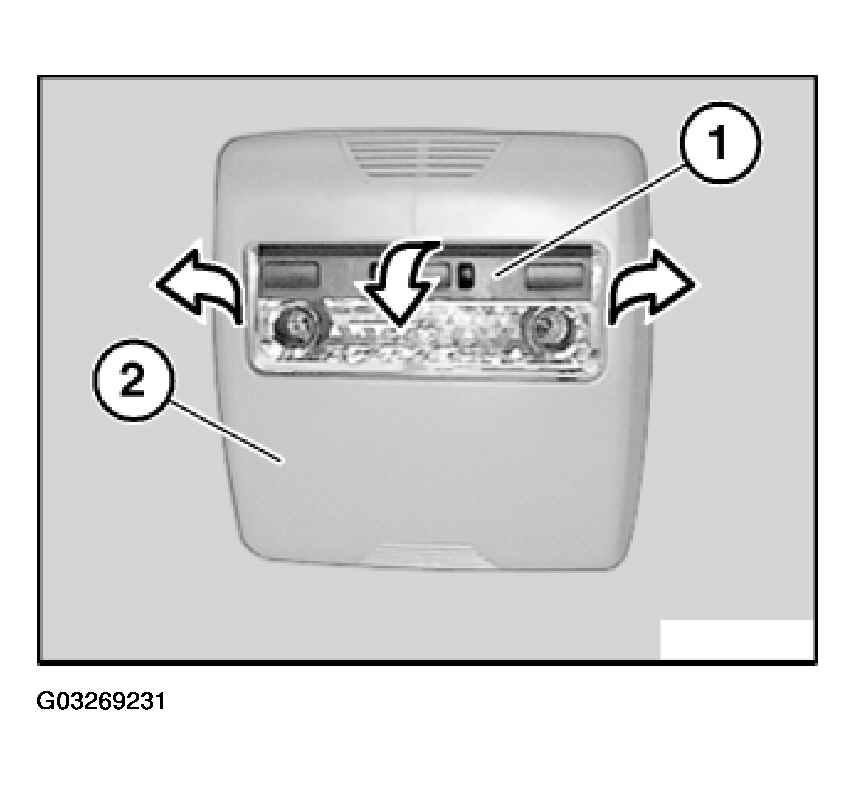

Fig 1: Removing Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Lever out ultrasonic module (2) at retaining clips (1) and remove.

Installation:

Ensure correct cable routing.

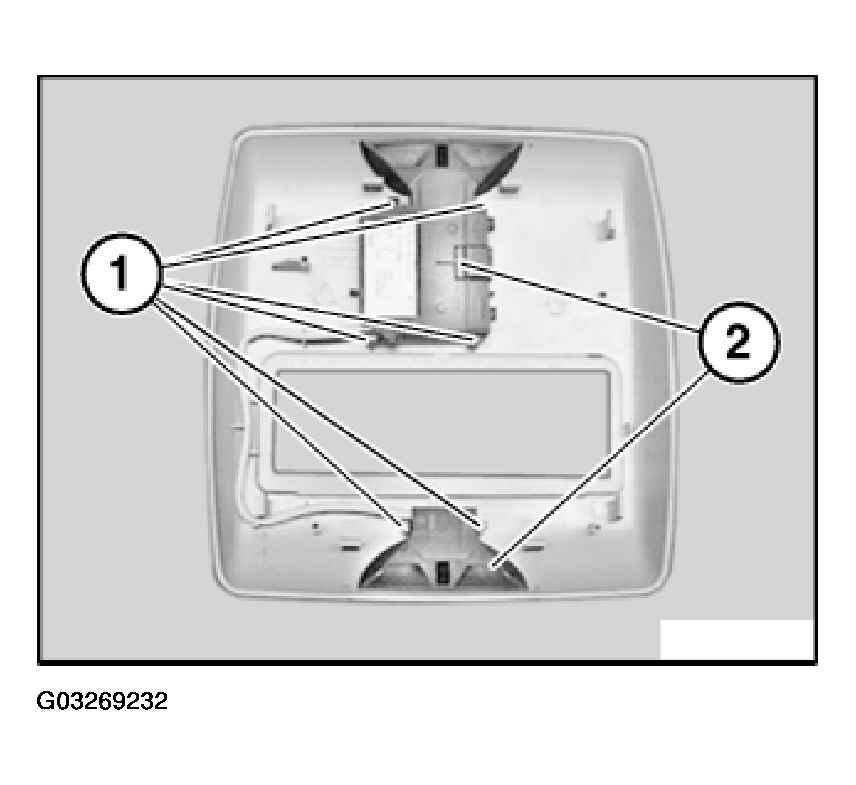

Fig 2: Removing Ultrasonic Module

Courtesy of BMW OF NORTH AMERICA, INC.
