64 53 550 Removing and installing or replacing condenser for air conditioner

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

A/C system is DRAWN OFF .

REMOVE INTAKE HOOD .

M54, M62 only:

Remove INTAKE FILTER HOUSING .

Release screws (1) and remove radiator bracket (2).

Detach rubber strip (3).

Fig 1: Identifying Radiator Bracket, Screws, And Rubber Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and detach lines (2).

Installation:

Replace sealing rings.

Release screws (3).

Fig 2: Locating Screws And Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Gently press cooler (1) towards rear and lift out A/C condenser (2).

Installation:

Lugs of plastic guides (3) must be securely engaged in bores.

Replace faulty plastic guides.

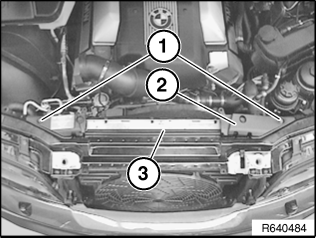

Fig 3: Identifying Cooler, A/C Condenser, And Plastic Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If A/C system is opened for more than 24 hours:

REPLACE DESICCATOR INSERT .
