64 11 839 Replacing servodrive of footwell flap (automatic A/C)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

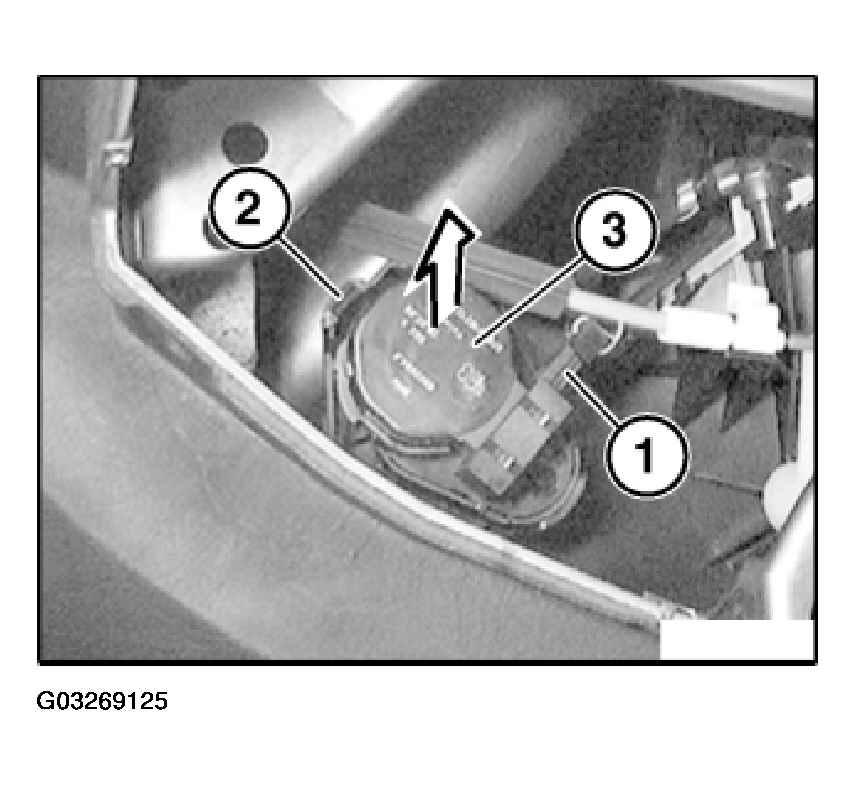

Fig 1: Locating Servodrive And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of footwell flap to position of servodrive.

Fig 2: Aligning Shaft Of Footwell Flap

Courtesy of BMW OF NORTH AMERICA, INC.
