64 11 829 Replacing servodrive of ventilation flaps (automatic A/C)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

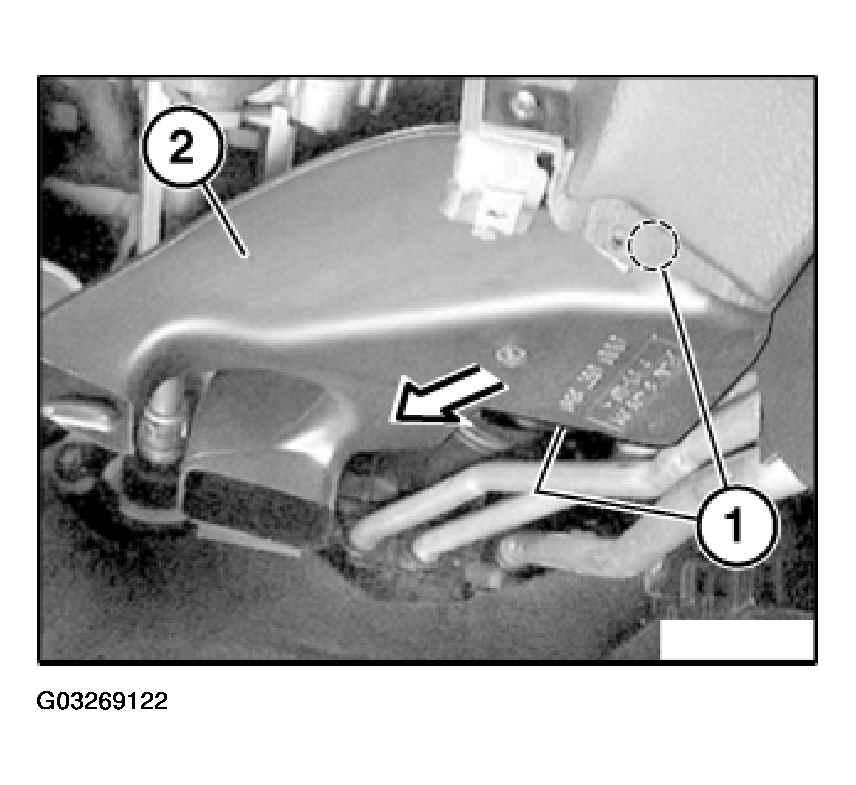

Unclip air duct for footwell on left (2) at mounts (1) and remove in direction of arrow.

Fig 1: Removing Left Air Duct For Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

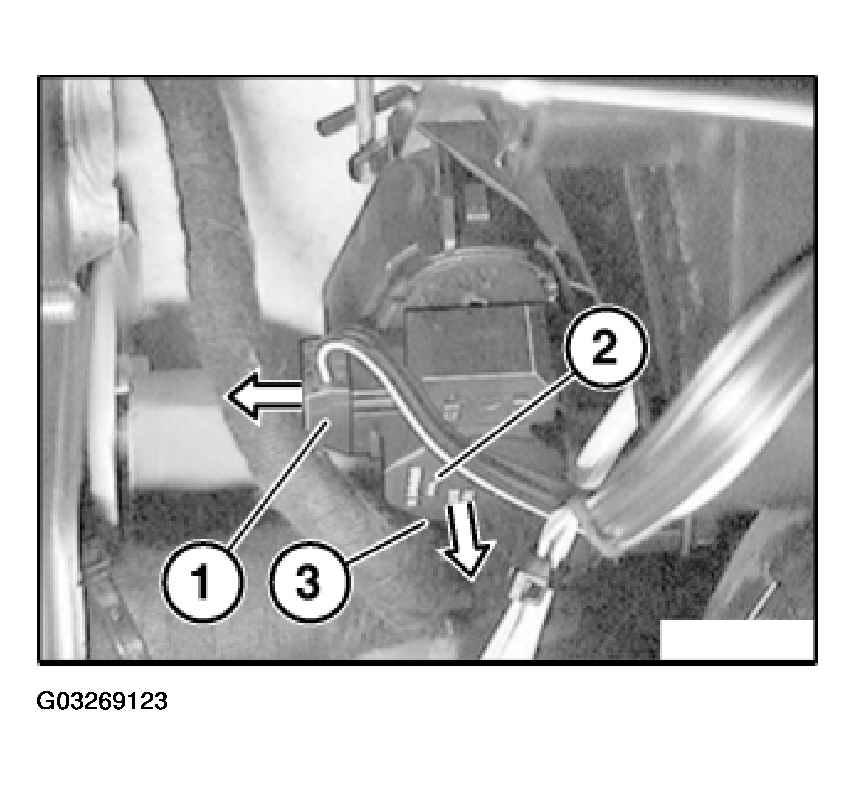

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Fig 2: Unlocking And Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of ventilation flaps to position of servodrive.

Fig 3: Aligning Shaft Of Ventilation Flaps

Courtesy of BMW OF NORTH AMERICA, INC.
