64 11 748 Removing and installing heater controls (A/C control)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - X5 .

Special Tools Required:

64 1 010

Unlock heating controls (1) with special tool 64 1 010 and pull out in direction of arrow.

Unfasten plug connection.

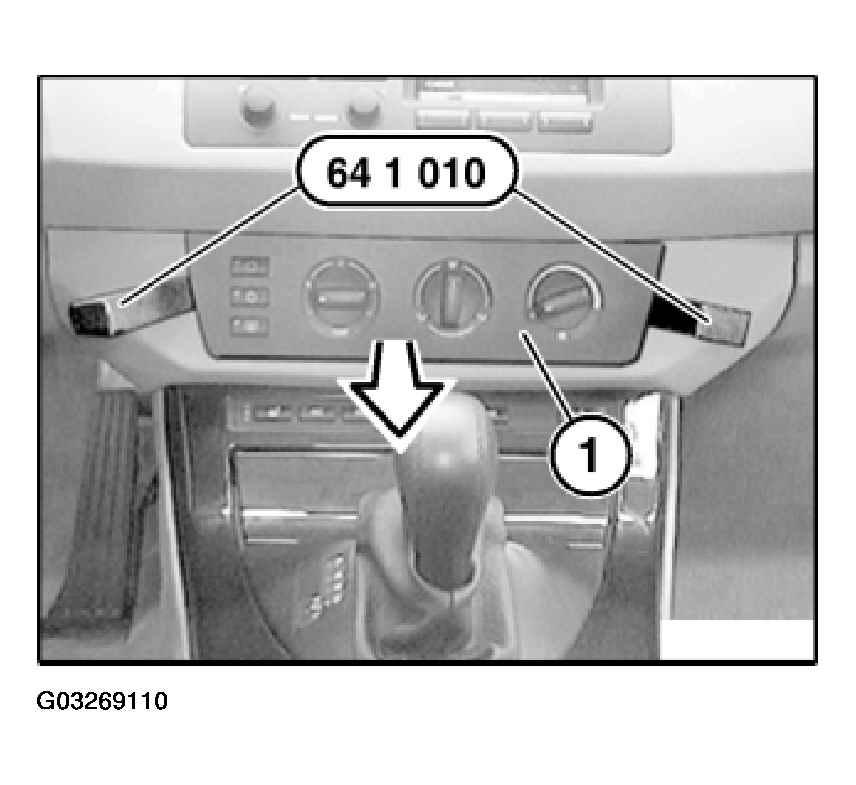

Fig 1: Removing Heating Controls Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Bowden cables (1).

Installation:

Observe color coding of Bowden cables.

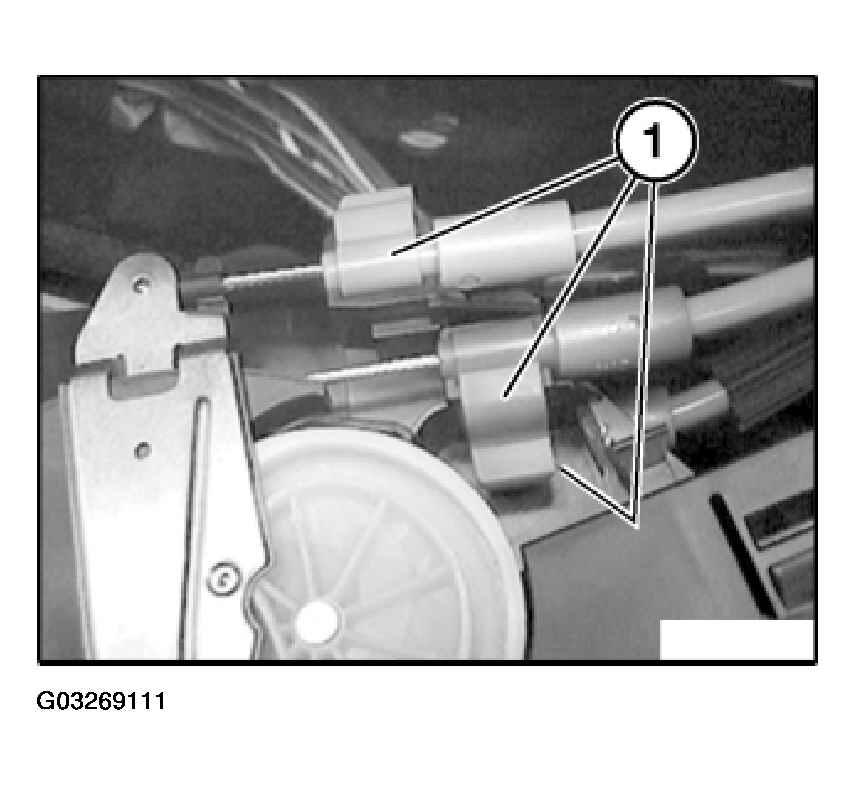

Fig 2: Locating Bowden Cables

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Unclip Bowden cable holder (1) in direction of arrow. Remove eye (2) from deflector (3).

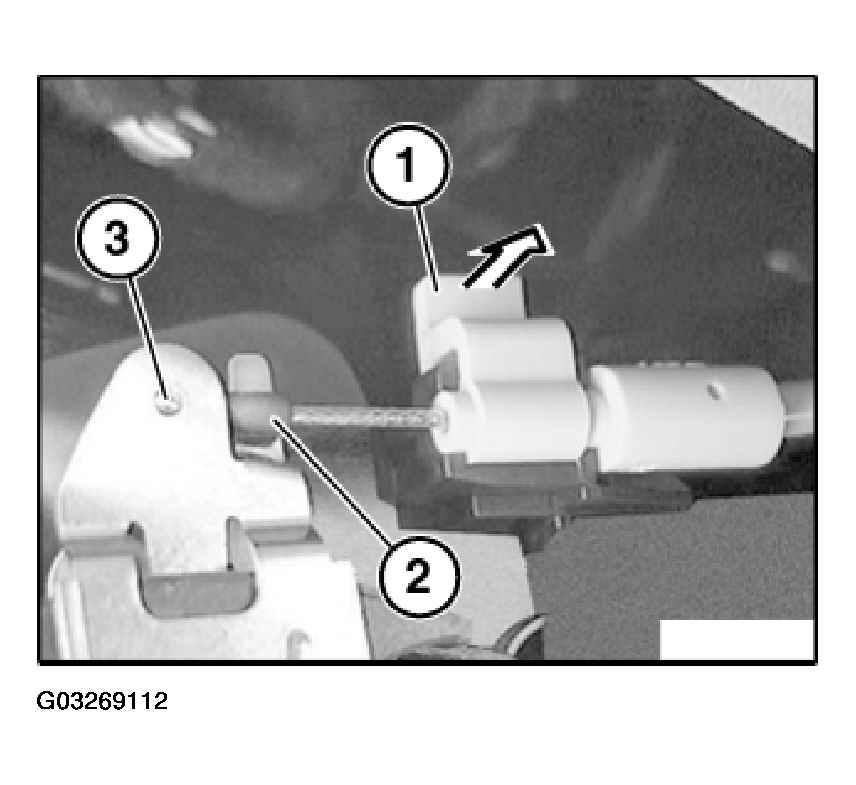

Fig 3: Removing Bowden Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.
