64 11 271 Replacing water valve for heater

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Danger of scalding!

Only perform this work after engine has cooled down.

M57 only:

RELEASE FUEL COOLER AND PLACE TO ONE SIDE .

All:

Unfasten cable clip (1).

Disconnect connector (2).

Unfasten cable tie (3).

Fig 1: Identifying Cable Clip, Connector, And Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out water valve for heater (1) towards top.

Release hose clamps (2) and detach water hoses.

Remove water valve for heater (1).

Installation:

If necessary, replace grommets or rubber mount (4).

Feed pilot pin (3) into rubber mount (4).

Fill and vent cooling system. See VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (M54/M56) .

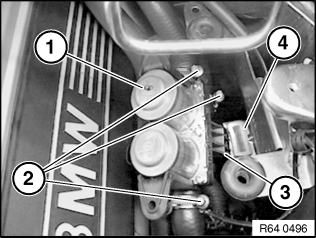

Fig 2: Identifying Water Valve, Hose Clamps, Pilot Pin, And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
