64 11 213 Removing and installing/replacing heater - A/C fan

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove INSTRUMENT PANEL TRIM .

NOTE: For purposes of clarity, illustration shows heater/air conditioner removed.

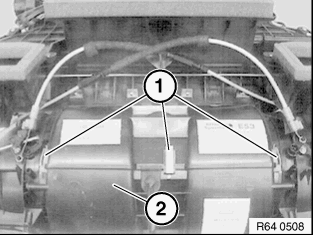

Unclip retainers (1). Remove cover (2).

Fig 1: Unclipping Retainers
G00535841
NOTE: For purposes of clarity, illustration shows heater/air conditioner removed.

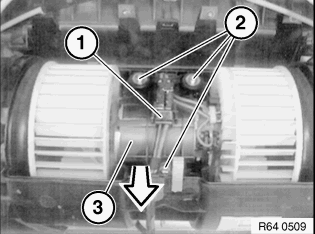

Disconnect plug connection (1). Loosen screws (2). Remove heater - A/C fan (3) in direction of arrow.

Fig 2: Removing Heater-A/C Fan In Direction Of Arrow
G00535842
