62 99 090 Replacing bulbs in instrument carrier
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove instrument carrier completely. Refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER .

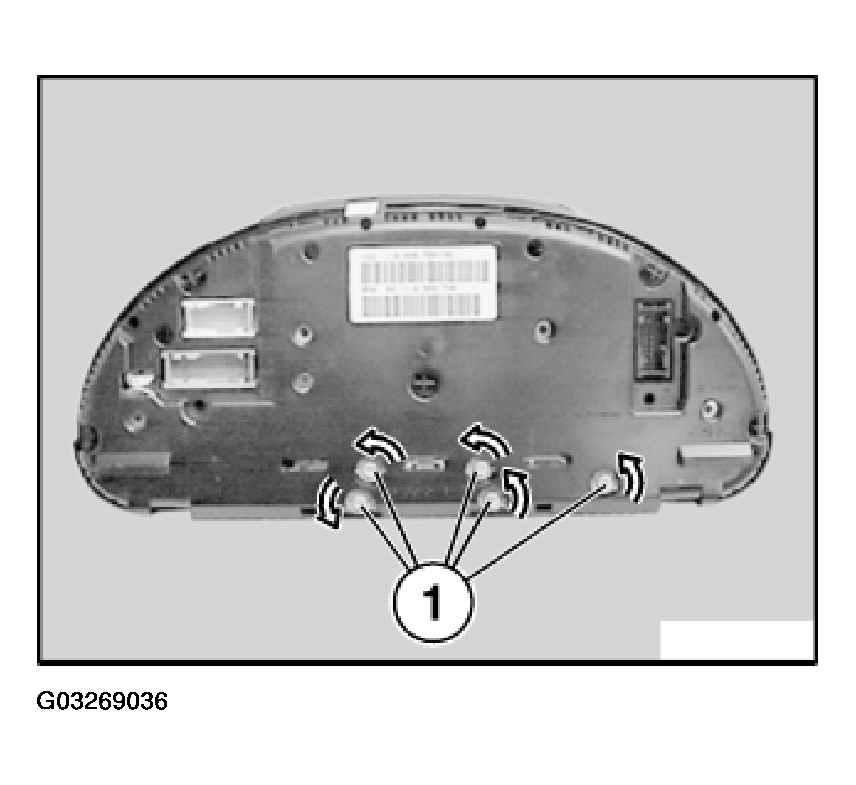

Turn bulbs (1) approx. 90° in direction of arrow and pull out.
NOTE:
Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.
