61 61 270 Removing and installing mounting bracket for windshield wiper system completely with motor

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 6 250

Remove cover for cowl.

Pull out air funnel (1) on microfilter housing.

Fig 1: Removing Cover For Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

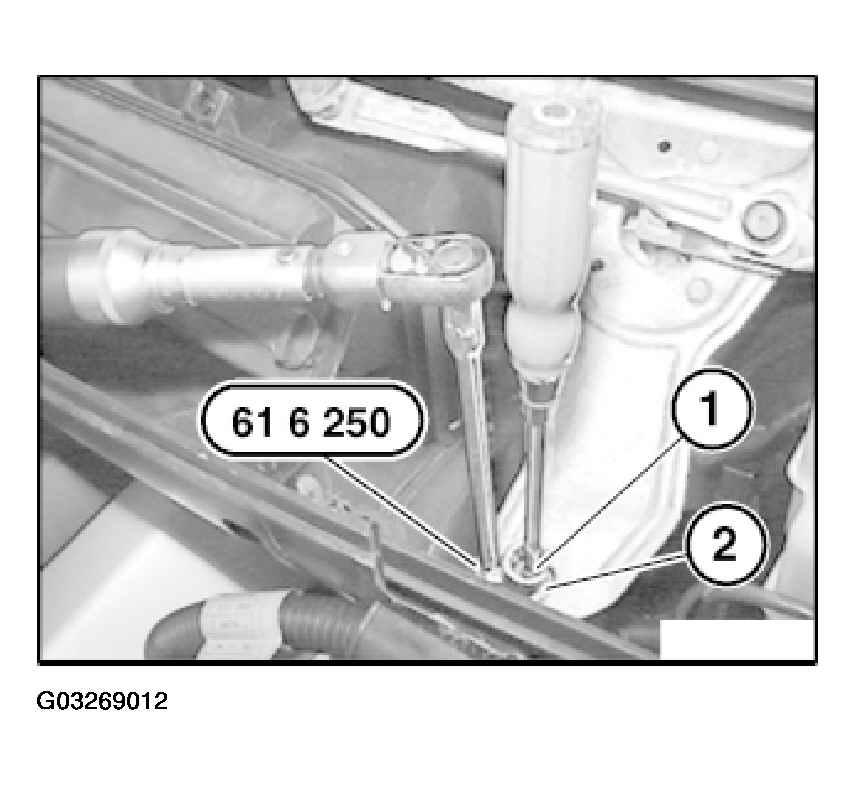

Remove screws (1) and (2).

Installation:

If necessary, replace damping ring upper/lower section.

Tighten screws (1) and (2) in specified sequence.

Observe tightening torque, 61 61 6AZ.

Release nut (3) with special tool 61 6 250.

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace rubber buffer.

Fit nut (3) loosely.

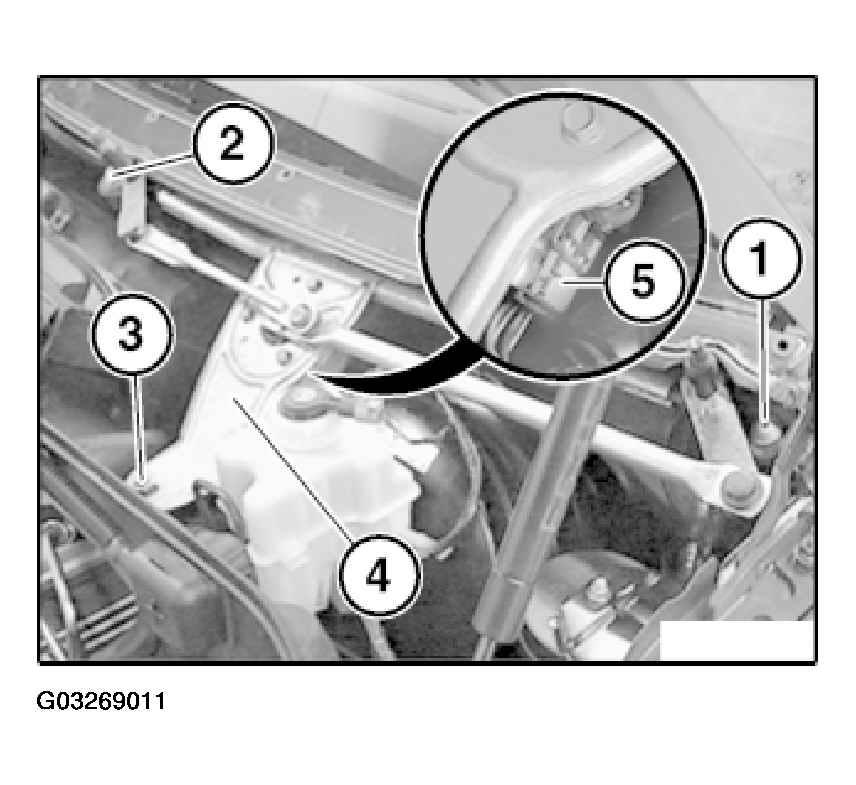

Remove bracket for windshield wiper system (4) and disconnect plug connection (5).

Installation:

Before installing wiper arms, allow wiper motor to return to its rest position.

To ensure the wiper system works properly, check and correct the contact angle of the wiper arms.

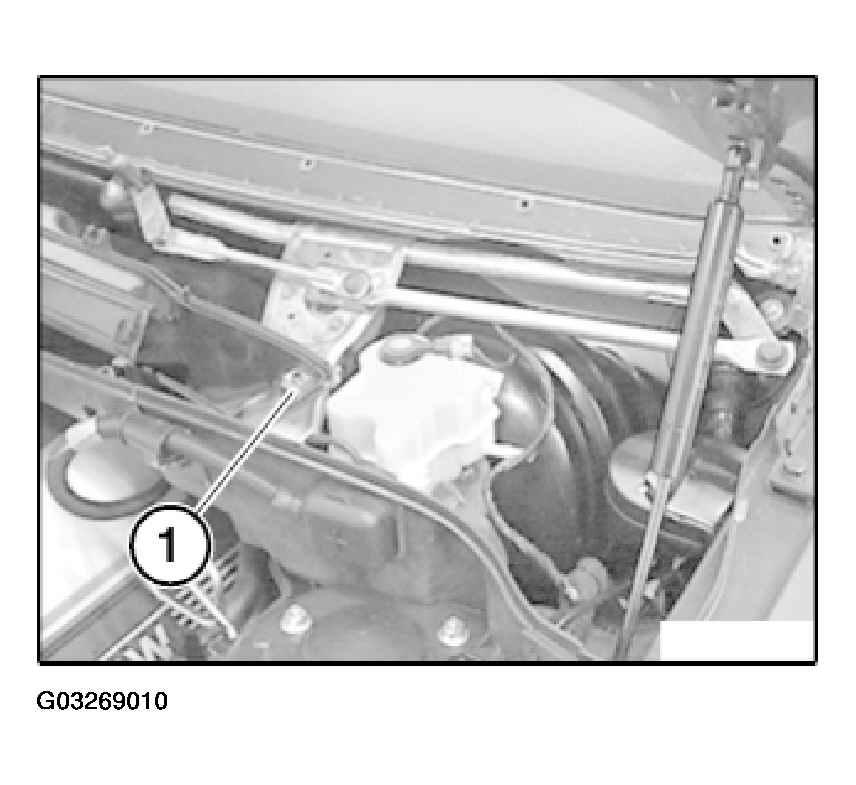

In event of deviations from specified value, correct contact angle using adjusting screw (1).

Check contact angle of wiper arms again.

Grip adjusting screw (1) and tighten nut (2) with special tool 61 6 250.

Observe tightening torque, 61 61 6AZ.

Secure nut (2) with locking varnish.

Fig 3: Securing Nut With Locking Varnish

Courtesy of BMW OF NORTH AMERICA, INC.
