61 71 061 Replacing fluid tank for windshield washer system

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

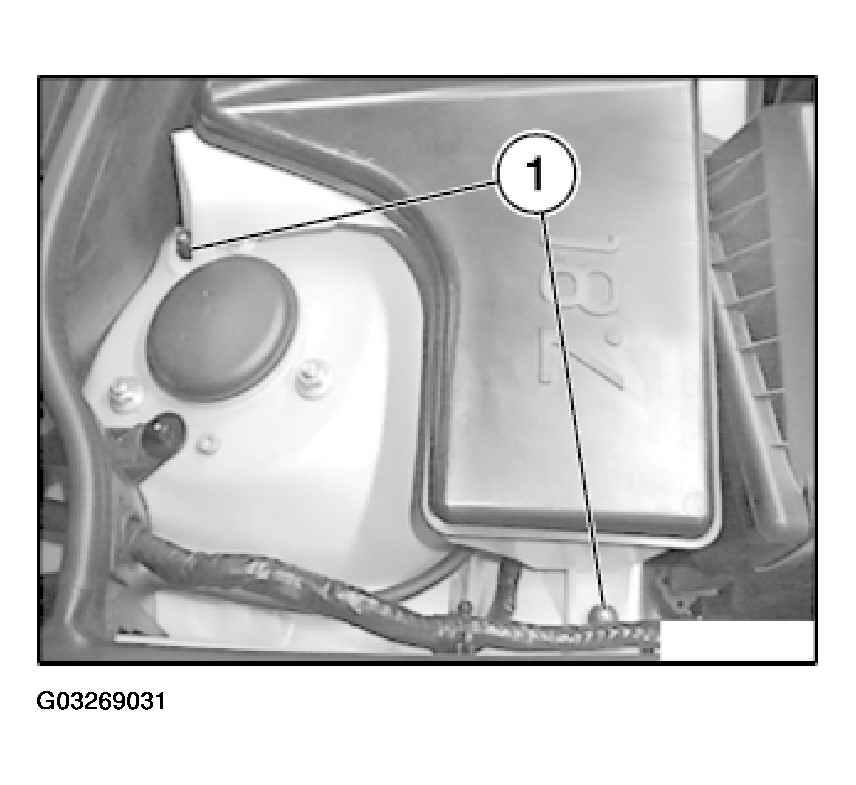

NOTE: Drain fluid tank for windshield washer system Unscrew nuts (1).

Fig 1: Removing Unscrew Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

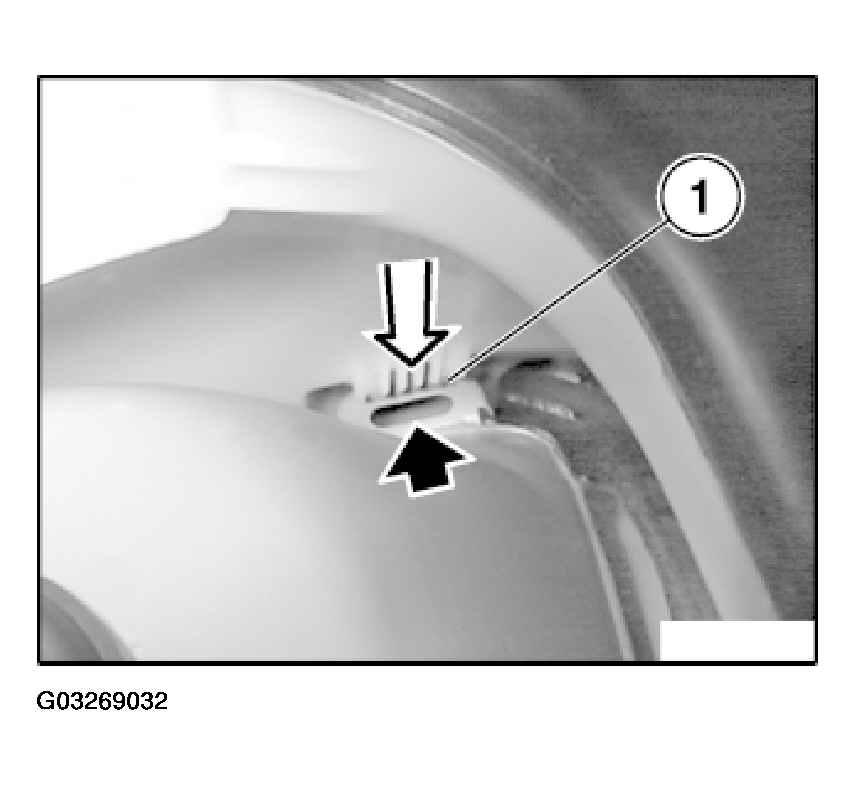

Installation:

Feed lug (1) into tab.

Press fluid tank for windshield washer system downwards until it is heard snapping into place.

Fig 2: Pressing Fluid Tank For Windshield Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

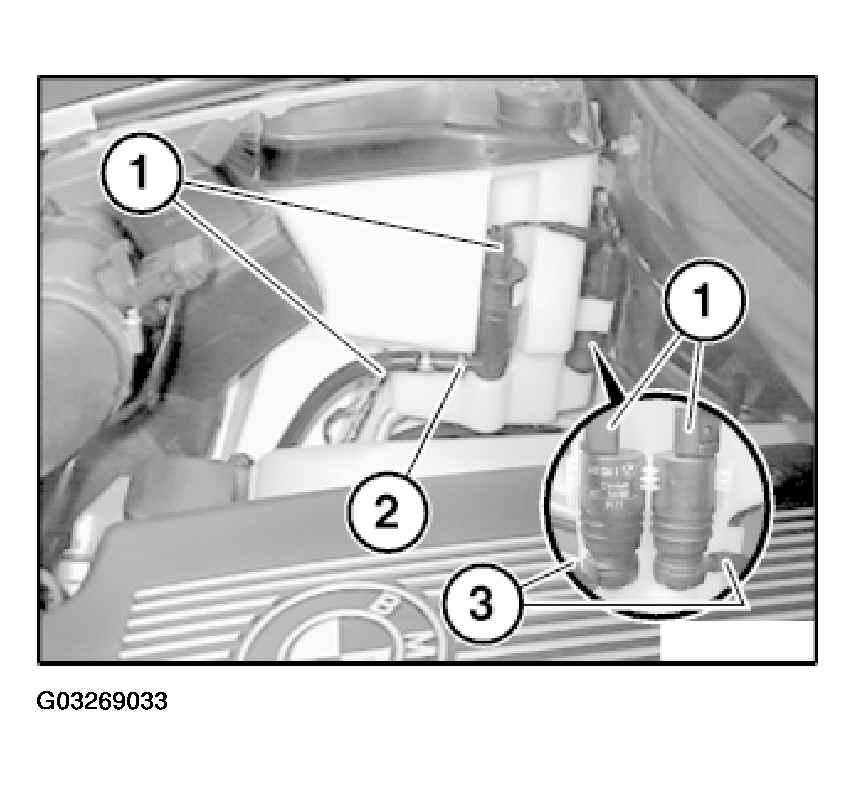

Disconnect plug connections (1).

Unlock hose (2) and detach.

Raise fluid tank for windshield washer system.

Detach hoses (3) and lift out fluid tank for windshield washer system.

Installation:

Make sure hoses are laid without kinks.

Fill fluid tank for windshield washer system.

Fig 3: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

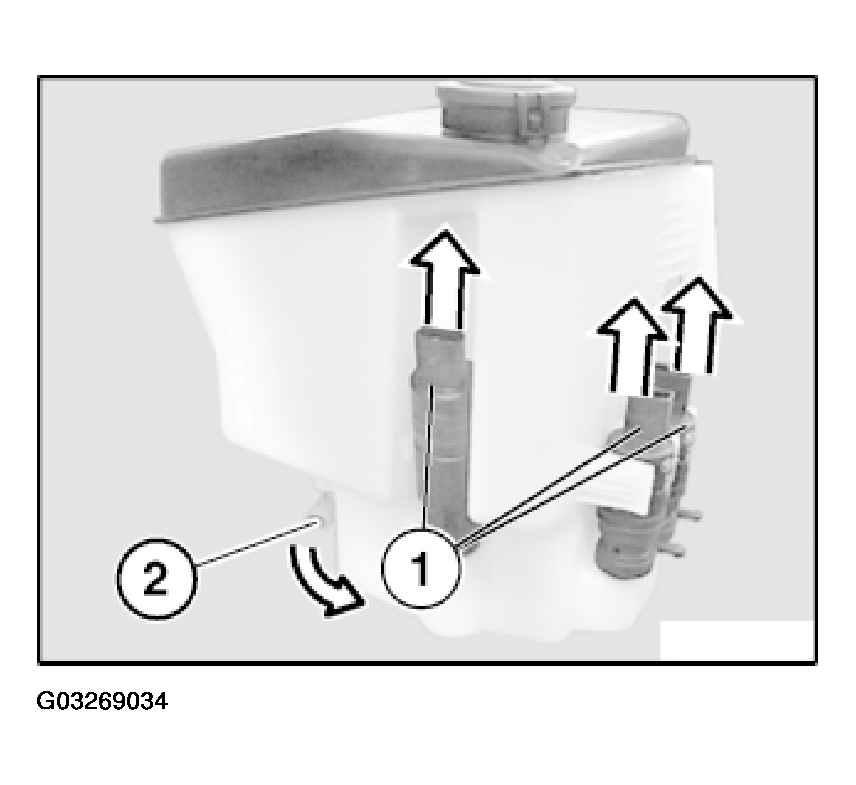

Pull washer pumps (1) vertically upwards and remove.

Installation:

Coat sealing rings of washer pump with anti-friction agent.
Replace sealing rings/strainers on washer pumps.

Turn level switch (2) approx. 90° in direction of arrow and pull out.

Remove cap and strainer for fluid tank of windshield washer system.

Fig 4: Removing Washer Pumps

Courtesy of BMW OF NORTH AMERICA, INC.
