61 31 315 Replacing level switch for brake fluid

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover.

Disconnect plug connection (1).

Release screw ring and remove level switch for brake fluid (2).

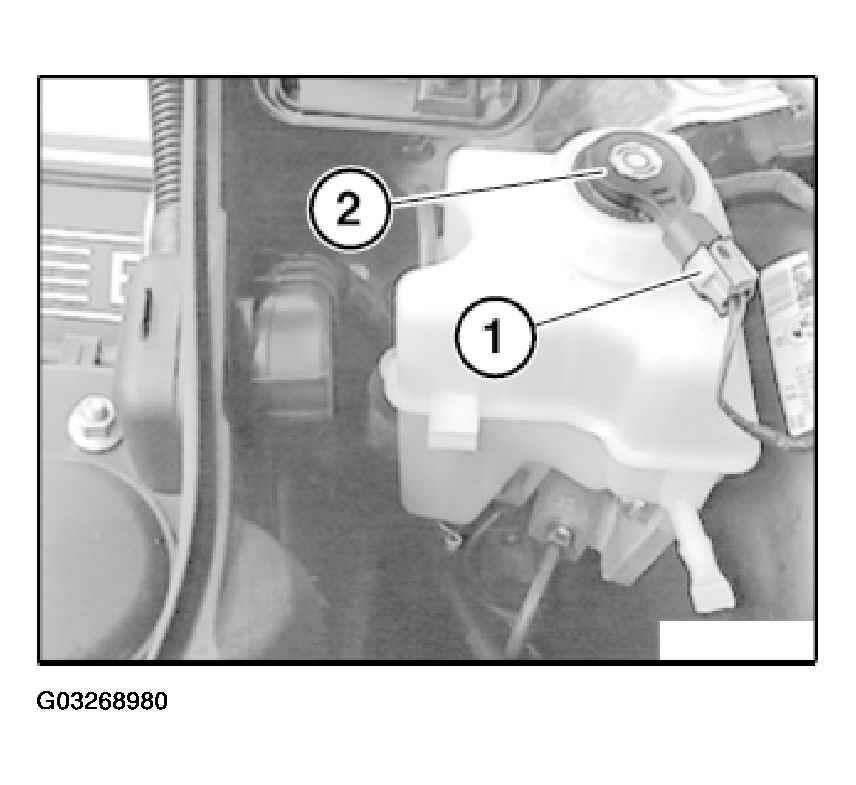

Fig 1: Removing Level Switch For Brake Fluid
G03268980Courtesy of BMW OF NORTH AMERICA, INC.
