61 31 273 Removing and installing/replacing air suspension switch
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317

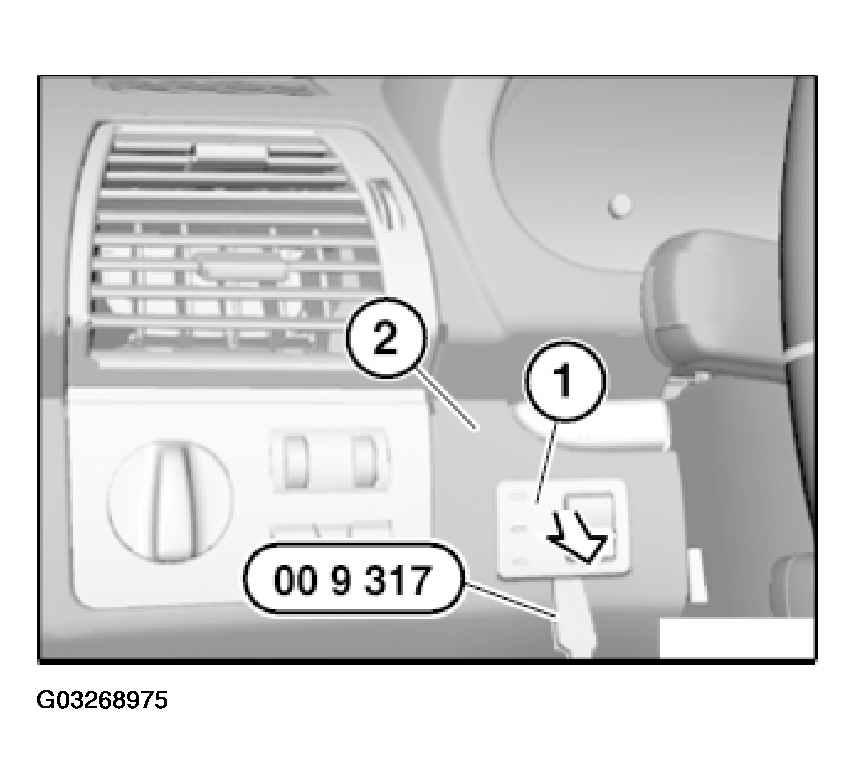

Partially fit special tool 00 9 317 as illustrated.
Lever air suspension switch (1) out of instrument panel trim (2).
Unlock associated plug connection and disconnect.
Remove air suspension switch (1).
