61 31 091 Removing and installing/replacing switch for left or right seat heating (rear)
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear compartment fresh air grill.
NOTE:

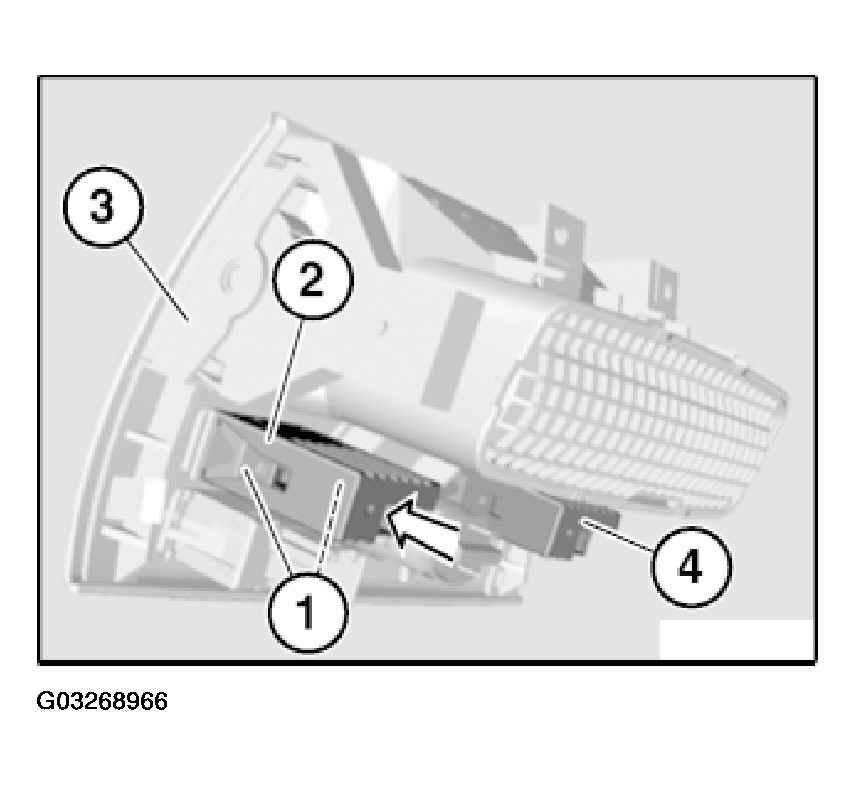

Removal of switch for right seat heating (2) is depicted.
Switch for left seat heating (4) is removed in the same way as switch for right seat heating (2).
Switch for left seat heating (4) is removed in the same way as switch for right seat heating (2).
Press locks (1) together, feed switch for right seat heating (2) out of rear compartment fresh-air grill (3) and remove.
