61 31 035 Removing and installing/replacing stalk for steering column adjustment

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower section of steering column trim.

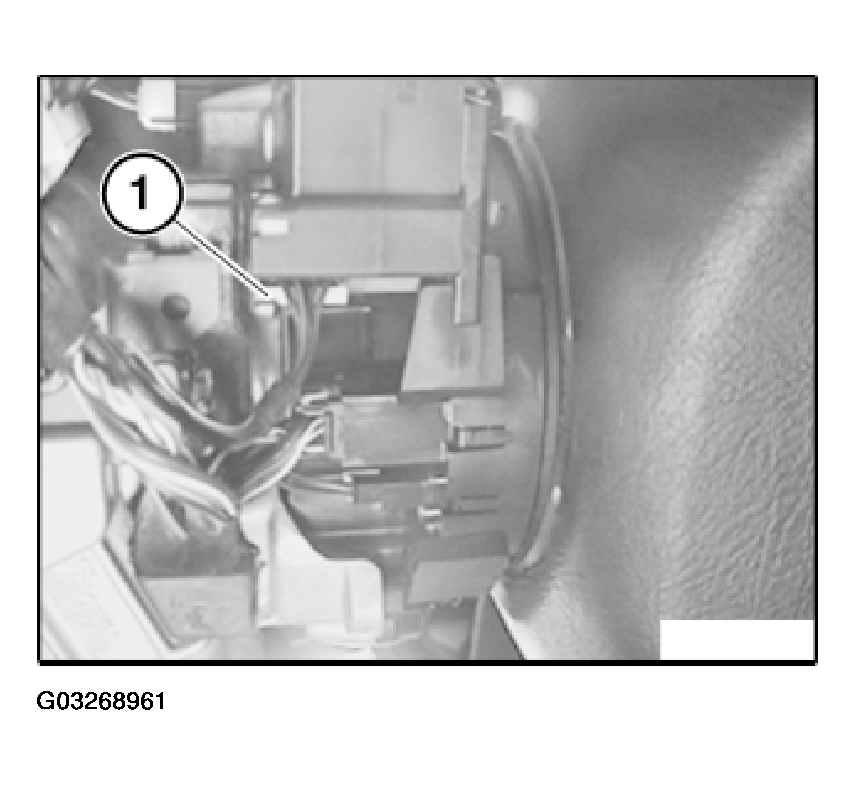

Disconnect plug connection (1).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

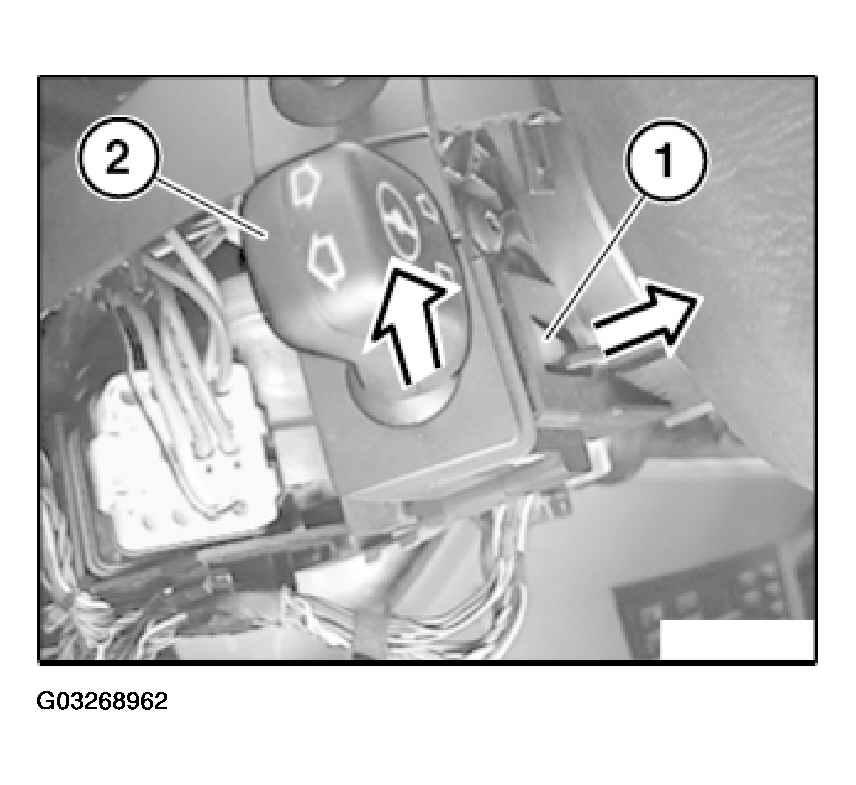

Raise lock (1) in direction of arrow and pull out stalk for steering column adjustment (2) in direction of arrow.

Fig 2: Pulling Out Stalk For Steering Column Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.
