61 31 020 Removing and installing ignition switch

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper section of steering column trim.

Remove lower section of steering column trim.

Unlock plug connection (1) and disconnect.

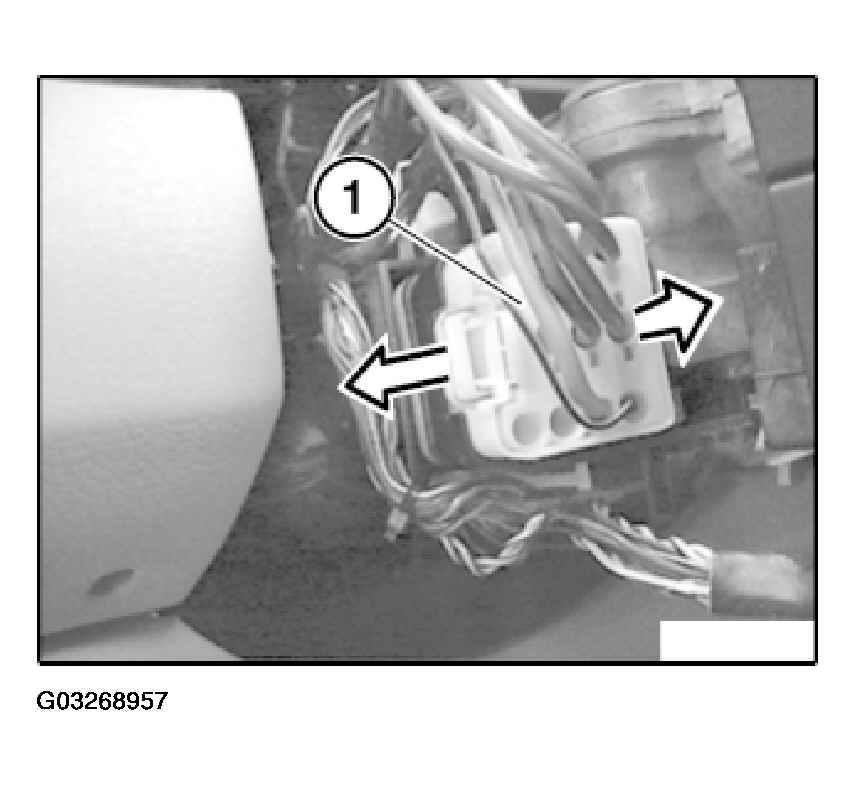

Fig 1: Removing Unlock Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Move fixture (2) for wiring harness slightly.

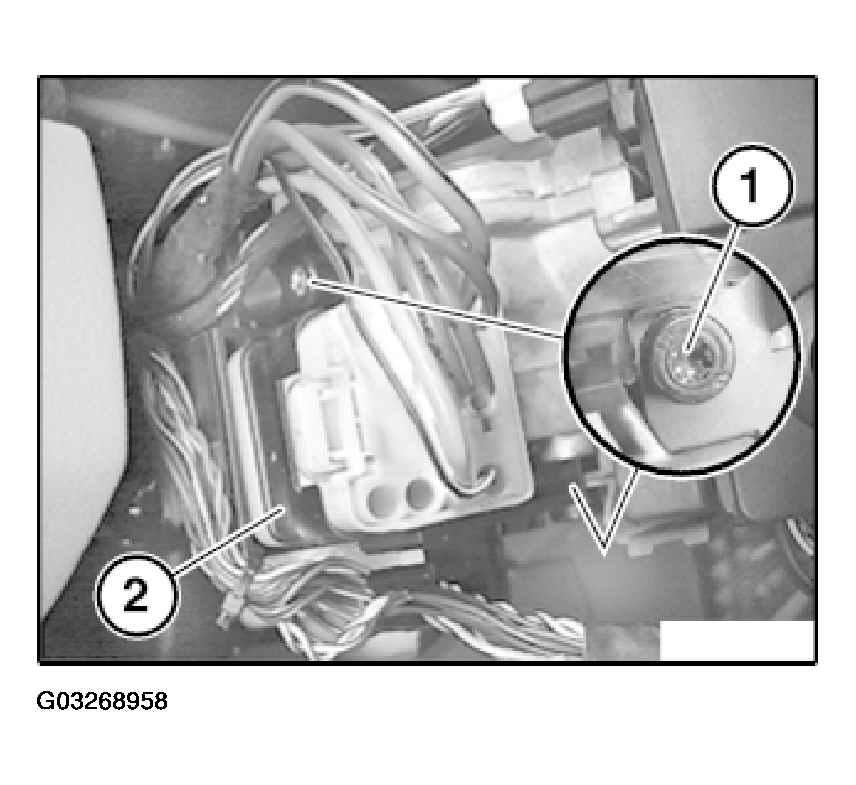

Fig 2: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing varnish and release headless setscrews (1).

Detach ignition switch (2) in direction of arrow.

Installation:

Secure headless setscrews with sealing varnish.

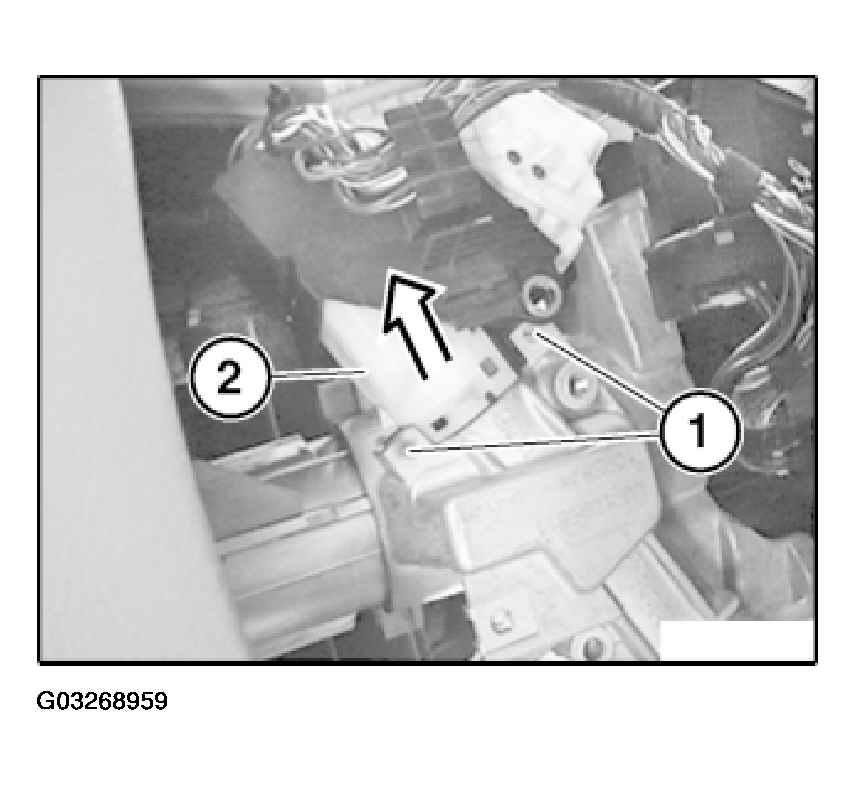

Fig 3: Detaching Ignition Switch

Courtesy of BMW OF NORTH AMERICA, INC.
